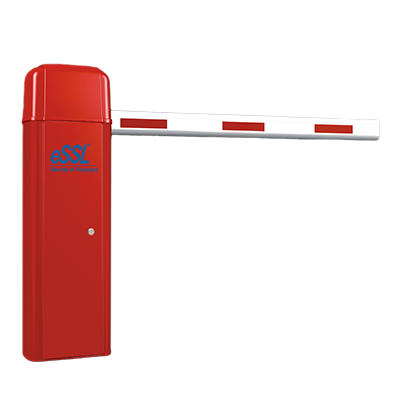

BOOM BARRIER - BG-108

The Bioteknix BG-108 Boom Barrier is an advanced automatic gate system designed to streamline vehicle access control in high-traffic areas. Perfect for toll plazas, commercial buildings, residential communities, and industrial facilities, it ensures fast, secure, and efficient entry and exit management. The BG-108 features a high-speed brushless DC motor, delivering smooth operation with adjustable boom arm lengths up to 6 meters. Its opening and closing times can be set between 1–6 seconds to match site requirements. Built for durability, the system includes a weather-resistant housing and intelligent safety features like anti-crush sensors and auto-reverse. Seamless integration with RFID, ANPR, push button, and remote access systems makes the Bioteknix BG-108 an ideal choice for modern access control infrastructure. Engineered for performance, reliability, and safety, it offers a long-term solution for vehicle flow management.

Datasheet Manual

share the website to

parameters

Maximum length of Boom 8m
Boom Rest Stand Yes
Arm material Aluminum
Time for Up/down 8s
Input control signal Dry contact
Ingress protection Degree IP54
Input Interface for * Photocell
* Air switch
* Loop detector(Optional)
Optional Interface Access control panel, Standalone access control,Control button
Remote control Yes,upto 25 meters
Mode Automatic/Manual
Incorporated control panel with 3 push buttons (STOP/UP/Down) to control the motor Bumping bounce back Optional
Auto closing time 1-80s
SMPS - Input AC 220V / 110V, 50Hz / 60Hz
Motor power 90W, 220V AC
Dimension (mm) 268 X 348 X 1050
operating temperature -20˚C ~ +50˚C
