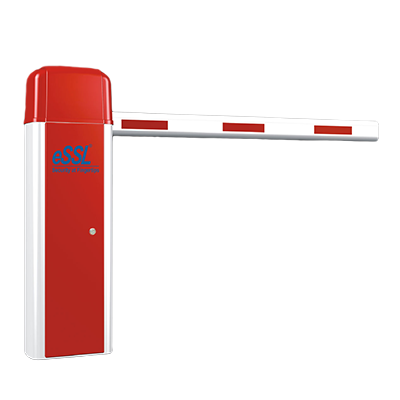

BOOM BARRIER - BG-S-105

The Bioteknix BG-S-105 Boom Barrier is a compact yet powerful automatic access control system, ideal for locations requiring efficient and secure vehicle management. Designed for residential complexes, office buildings, small commercial zones, and parking facilities, the BG-S-105 combines fast operation with reliable safety features. It supports boom arms up to 4–6 meters with opening and closing speeds adjustable between 1 to 6 seconds. Powered by a robust brushless DC motor, it ensures long-lasting, quiet, and maintenance-free performance. Built-in safety mechanisms like anti-crush sensors and auto-reverse prevent accidents, while compatibility with RFID, ANPR, and remote systems allows seamless integration into any access control setup. The Bioteknix BG-S-105 offers a weather-resistant build, modern design, and dependable operation—making it an ideal solution for smart vehicle entry and exit control in medium to high-traffic environments.

Datasheet Manual

share the website to

parameters

Maximum length of Boom 2m
Boom Rest Stand No
Arm material Aluminum
Time for Up/down 2s
Input control signal Dry contact
Ingress protection Degree IP54
Input Interface for * Photocell
* Air switch
* Loop detector
Output interface lamp
Optional Interface Access control panel, Standalone access control,Control button
Remote control Yes,upto 25 meters
Mode Automatic/Manual
Incorporated control panel with 3 push buttons (STOP/UP/Down) to control the motor Bumping bounce back Optional
SMPS - Input AC 220V / 110V, 50Hz / 60Hz
Motor power 90W, 120V AC
Dimension (mm) 268 X 348 X 1050
operating temperature -20˚C ~ +50˚C
