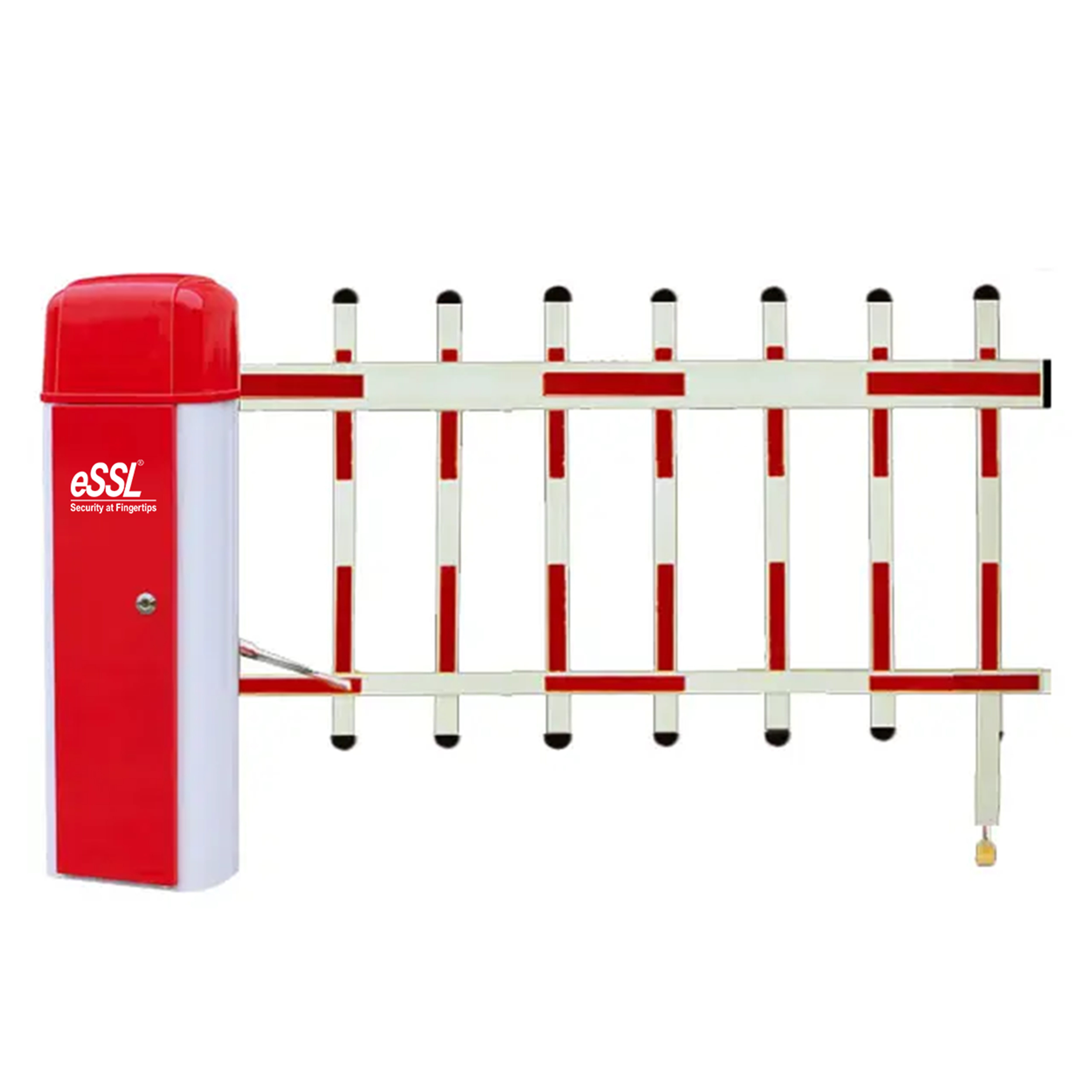

Bioteknix BG100 TII – Fencing Arm Boom Barrier is a high-security automatic barrier designed to restrict unauthorized vehicle and pedestrian access. The fencing-style arm includes vertical grills that prevent two-wheelers or individuals from passing underneath, making it ideal for industrial areas, gated communities, toll plazas, and government facilities. The boom arm is available in lengths up to 6 meters, with left, right, or unidirectional opening options. Built with durable aluminum alloy and steel, it withstands harsh environments and impacts. It features fast opening and closing (1.5 to 6 seconds) and supports multiple access control methods, including RFID, remote control, push button, and loop detectors. Its powerful motor ensures smooth and reliable performance. The BG100 TII provides a strong physical and visual barrier, combining advanced automation with maximum security, making it the perfect solution for any location requiring strict access control and traffic management.
| Maximum length of Boom | 5M Fencing |
| Boom Rest Stand | No |
| Arm material | Aluminum |
| Time for Up/down | 6s |
| Input control signal | Dry contact |
| Ingress protection Degree | IP55 |
| Input Interface for | * Photocell * Air switch |
| Output interface | Alarm lamp |
| Optional Interface | Access control panel, Standalone access control,Control button |
| Remote control | Yes,upto 25 meters |
| Mode | Automatic/Manual |
| Incorporated control panel with 3 push buttons (STOP/UP/Down) to control the motor Bumping bounce back | Optional |
| Auto closing time | 1-99s |
| SMPS - Input | AC 220V / 110V, 50Hz / 60Hz |
| Motor power | 90W, 240V AC |
| Dimension (mm) | 268 X 348 X 1050 | operating temperature | -20˚C ~ +50˚C |
| Features | * Can control by three position switch or by remote control unit, operate ‘OPEN’, ‘CLOSE’ and ‘STOP’ * Machine core with compression spring, effectively avoids the accidents caused by spring breaking * Motor cooling fan, solving the problem of heat-protection * Double safety limit switches * Auto Close function * Manual Release * Duty Cycle : intensive * MCBF : 30 Lakhs * Traffic Light interface. (Optional) * Wire control (switch signal)\ Remote control ( upto25m) * Compatible with Weigand and RFID Readers * Compatible with bio-metric * Die-casting aluminum alloy motor, precision and good at thermal radiating * Support the infrared photocell for anti-bumping function (optional) |
