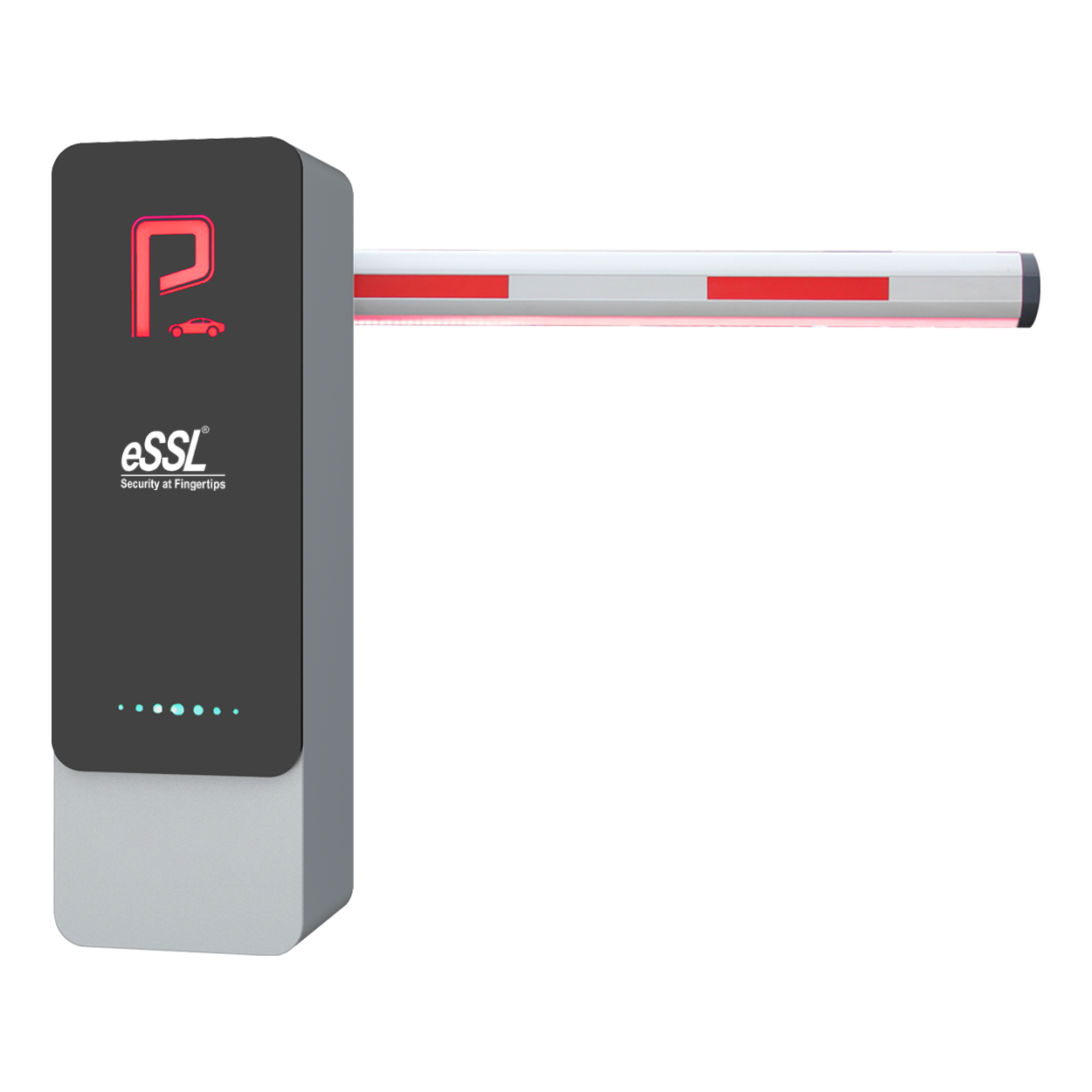

Bioteknix BG180-BDC Auto-Barrier with DC Brushless Motor is a premium automatic boom barrier system designed for efficient and secure vehicle access control. Powered by a high-performance DC brushless motor, it ensures smooth, quiet, and maintenance-free operation, ideal for continuous use in parking lots, toll booths, gated communities, commercial complexes, and more. The BG180-BDC features adjustable boom lengths, fast opening/closing speeds, auto-reverse on obstacle detection, and integrated RS-485 communication for seamless integration with access control systems. Its robust, weather-resistant housing (IP54-rated) ensures durability in harsh outdoor conditions. Optional battery backup guarantees uninterrupted operation during power failures. Bioteknix delivers cutting-edge automation solutions with a focus on reliability, performance, and long-term value. Contact an authorized Bioteknix distributor today for pricing, installation, and technical support.
| Working voltage | 24VDC土5% |
| Environment humidity | 10%~90% (non-condensing) |
| IP class | IP54 |
| Rated Power | 120W 24VDC |
| Power Supply | 220V+10%50/60Hz、110V土10% 50/60Hz |
| Working Temperature | -35°C-70°C Max |
| Boom Length with Operating Speed | 6m (6s), 4m (3s), 3m (1.5s) |
| Features | * 24VDC brushless motor drive, safe electrical, no risk of leakage * DC brushless mechanism, DC brushless motor, hull limit switch, operate stable, low sound, long lifetime * Operate speed at fastest 1.2S, the speed adjustment is available, soft start and soft stop function, high efficiency pass * With reverse, auto-close, auto intelligent check function are available * With connection for parking lot management system, loop detector, radar sensor, photocell. RS485 is optional * Cabinet is electrophoresis then powder coating, for outdoor using * Could operate by manual if power failure, auto operation by connecting backup battery is optional |
