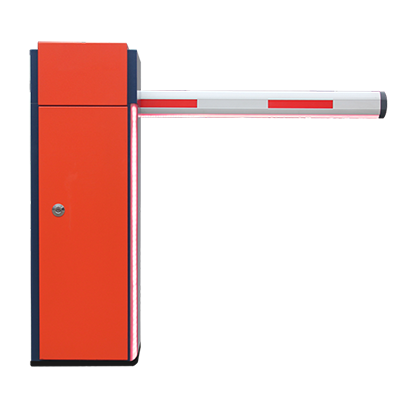

BOOM BARRIER - BGL-100

The Bioteknix BGL-100 Boom Barrier is a high-efficiency automatic gate system built for managing vehicle access in commercial, residential, and industrial spaces. With a robust design and smooth operation, it is ideal for parking lots, toll booths, gated communities, and logistics hubs. The BGL-100 supports boom arms up to 6 meters, offering fast opening and closing speeds adjustable between 1–6 seconds. Equipped with a powerful brushless DC motor, it ensures quiet, energy-efficient, and maintenance-free operation. Safety is enhanced through anti-crush sensors and auto-reverse functionality, protecting both vehicles and pedestrians. The weather-resistant enclosure ensures consistent performance in outdoor conditions. Easily integrates with RFID, ANPR, push buttons, and remote access systems. The Bioteknix BGL-100 delivers a perfect balance of reliability, speed, and security for modern vehicle access control solutions.

Datasheet Manual

share the website to

parameters

Maximum length of Boom 5m
Boom Rest Stand Yes
Arm material Aluminum(with Red & Green LED indication)
Time for Up/down 6s
Input control signal Dry contact
Ingress protection Degree IP54
Input Interface for * Photocell
* Air switch
* Loop detector
LED Indicator Red / Green
Optional Interface Access control panel, Standalone access control,Control button
Remote control Yes,upto 25 meters
Mode Automatic/Manual
Incorporated control panel with 3 push buttons (STOP/UP/Down) to control the motor Bumping bounce back Optional
SMPS - Input AC 220V / 110V, 50Hz / 60Hz
Motor power 90W, 240V AC
Dimension (mm) 268 X 348 X 1050
operating temperature -20˚C ~ +50˚C
