C3 200

DOOR ACCESS CONTROL

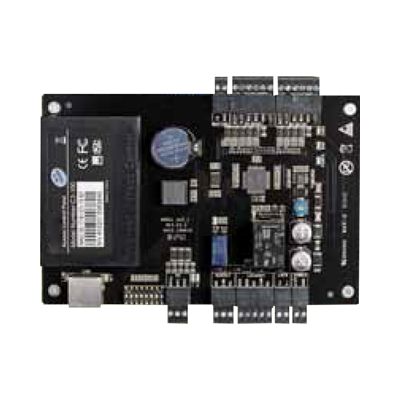

Bioteknix C3-200 is a professional 2-door access controller designed to manage up to 4 RFID or biometric readers (Wiegand/RS-485). It supports 30,000 users and stores 100,000 event logs. Ideal for office buildings, hospitals, factories, and critical zones, it features advanced access control options like Anti-Passback, interlocking, linkage, multi-card opening, and first-card rules. With 6 inputs and 4 outputs, it supports door status monitoring, alarms, and fire panel integration. The system communicates via TCP/IP or RS-485 and is compatible with Bioteknix Access Software for user-wise and door-wise reports. Real-time monitoring and centralized control are enabled via a browser-based interface. Durable and secure, the C3-200 ensures flexible, scalable, and reliable access control across small to medium facilities. Multiple controllers can be deployed for larger installations, offering full control over who accesses where and when.

Datasheet Manual

share the website to

parameters

Number of Door 2 Door
Card Holders Capacity 30000
Log Events Capacity 100000
Communication TCP/IP and RS-485
Number of Readers Supported 4
Types of Readers Supported 26-bit Wiegand, others upon request
Number of Inputs 6 (2Exit Device, 2 Door Status, 2AUX)
Number of Outputs 4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output)
Types of Readers Supported 26-bit Wiegand, others upon request
Weight 7.5lbs (3.4kg)
Enclosure Powder Coated Aluminium
Mounting Wall Mount
Dimensions (Bundle Only) 380mm(L)X80mm(W) X 280mm(H)
Dimensions ( Board Only) (160mm×106mm)
Recommended Power Supply 12V DC, 1.5A
Number of Inputs 2( 1 Exit Button, 1 Door Sensor)
Number of Outputs 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)
Features TCP/IP and RS485 communication,Built-in Auxiliary input and Output,Access Control Functions,Support full range of card readers.
Software and Database Supported Access Security System 3.5 (Desktop Version), Database Type:- MS Access / MS SQL
