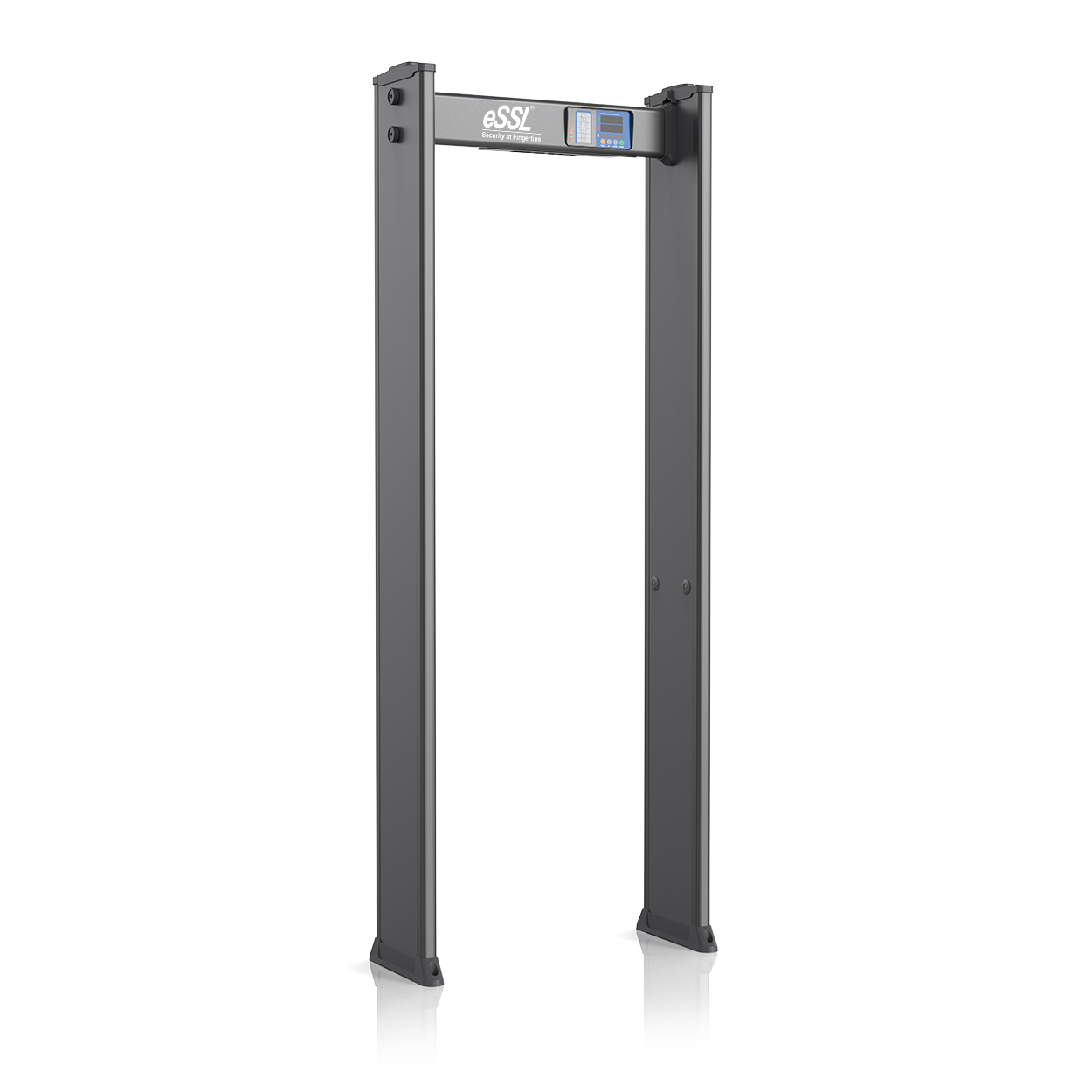

Built for tough environments, the D270-18-IP65 is an 18-zone door frame metal detector engineered for high-accuracy threat detection in both indoor and outdoor settings. With an IP65-rated enclosure, it’s fully protected against dust and water—ideal for harsh weather or industrial areas. Each of the 18 detection zones provides precise location data, helping security teams quickly identify and respond to threats. The integrated side-mounted control panel offers easy access to settings, while LED indicators and alarm signals guide efficient screening. Whether it's used at construction sites, government buildings, outdoor events, or secure facilities, the D270-18-IP65 offers durability, reliability, and performance. Quick installation, customizable sensitivity, and advanced safety features make it a smart choice for high-security applications.
| Working principle | Electromagnetic |
| Materials | ABS (Acrylonitrile Butadiene styrene) raw materials |
| Frequencies | 0-100 |
| Net weight | 21 KG |
| Gross weight | 27 KG |
| External size | 2165x828x349mm |
| Passage size | 2017x720x349mm |
| Working humidity | 99%, non-condensing |
| Working temperature | -20°C-65°C |
| Input | AC 100 V-240 V/ Frequency 50HZ-60HZ |
| Product colour | Matte Black |
| IP rating | IP65 |
| Sensitivity adjustable | 0 - 400 |
| Volume adjustable | 0 - 50 |
| Alarm volume | 0 - 3 sec |
| Alarm tones | 15 different tone |
| Features | * Support Multi Zones by selecting 6/12/18 Zones
* The sensitivity of the Door can be adjusted between specific doors Right/Left* Reset of Counts* Manual Calibration * 5 Digit7 Segment Bright Digital LED display* Integration of Entrance Automation Devices(Turnstile, Flap /Swing Barrier) through Access Controller of IOT board that blocks person with any Prohibited Items (Optional) * Has a low Magnetic Field Technology * Ergonomic structure new design * High bright new LED digital with zones display * Easy fixing of cross beams with side door DFMD controller * Helps in detection of prohibited items * Infrared sensor for pass count & alarm count * Simple installation 2 doors (R & L), cross beam with wire probe |
