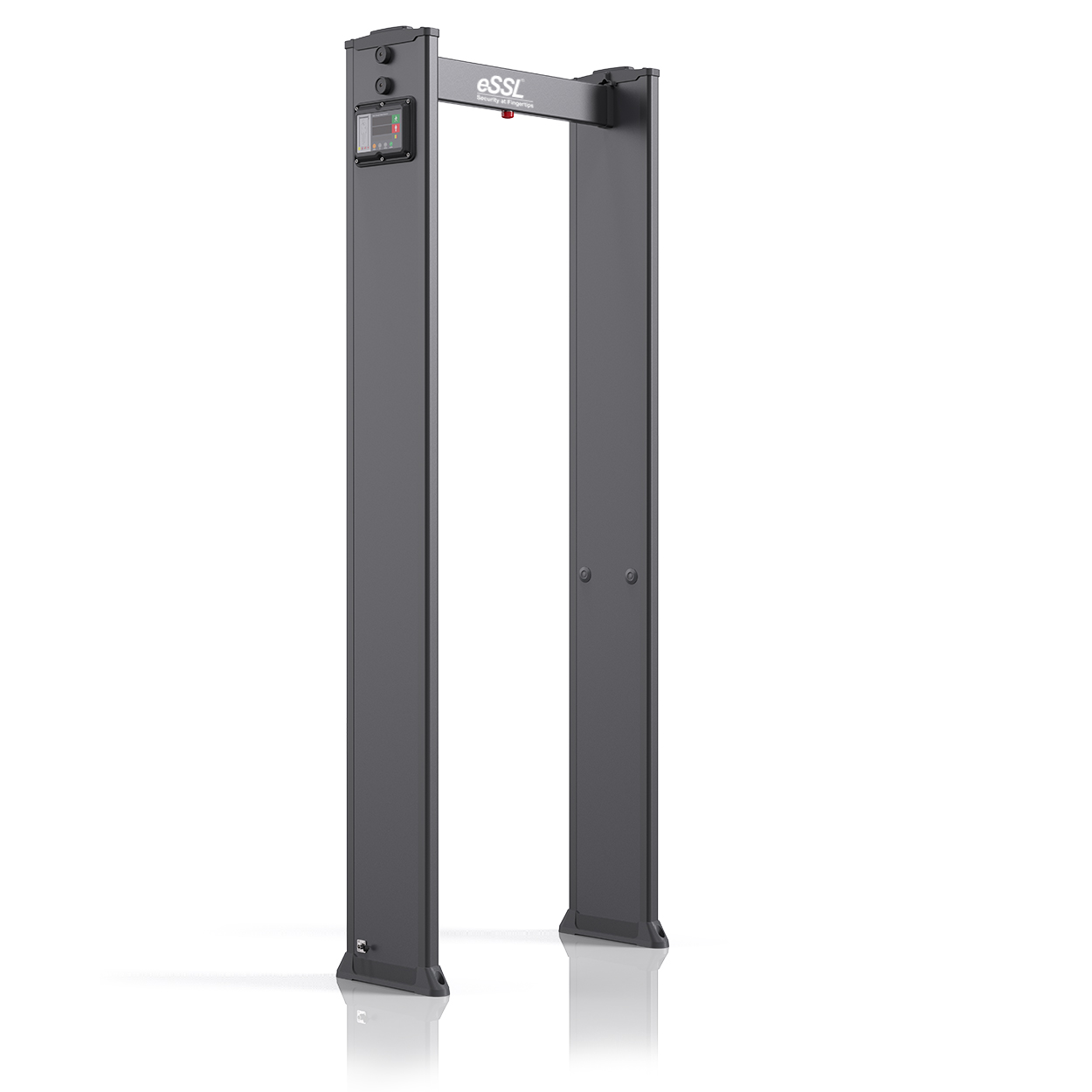

The D270-9-IP54 is a precision-engineered walk-through metal detector featuring 9 detection zones and an integrated door side controller for easy operation. Designed for reliable threat detection in high-traffic environments, it offers enhanced pinpoint accuracy and faster screening. The IP54-rated enclosure provides resistance to dust and splashing water, making it suitable for both indoor and semi-outdoor use. Ideal for airports, government facilities, schools, factories, and event venues, the D270-9-IP54 ensures effective security with minimal disruption. Each zone operates independently, allowing operators to identify the exact location of metallic threats. The sleek design, multi-zone LEDs, adjustable sensitivity, and tamper-proof settings make this model a dependable security solution. Quick installation, user-friendly controls, and durable construction make the D270-9-IP54 the smart choice for modern access control.
| Working principle | Electromagnetic |
| Materials | ABS (Acrylonitrile Butadiene styrene) raw materials |
| Frequencies | 0-100 |
| Net weight | 21 KG |
| Gross weight | 27 KG |
| External size | 2165x828x349mm |
| Passage size | 2017x720x349mm |
| Working humidity | 99%, non-condensing |
| Working temperature | -20°C-65°C |
| Input | AC 100 V-240 V/ Frequency 50HZ-60HZ |
| Product colour | Matte Black |
| IP rating | 54 - [Dust proof coating] |
| Sensitivity adjustable | 0 - 400 |
| Volume adjustable | 0 - 50 |
| Alarm volume | 0 - 3 sec |
| Alarm tones | 15 different tone |
| Detection | Ferrous metals < 75gm |
| Features | * Ergonomic structure new design
* High bright new LED digital with zones display * Support multi zones by selecting 3/6/9 * Easy fixing of cross beams with side door DFMD controller * Helps in detection of prohibited items * Infrared sensor for pass count & alarm count * Simple installation 2 doors (R & L), cross beam with wire probe. |
