D4006

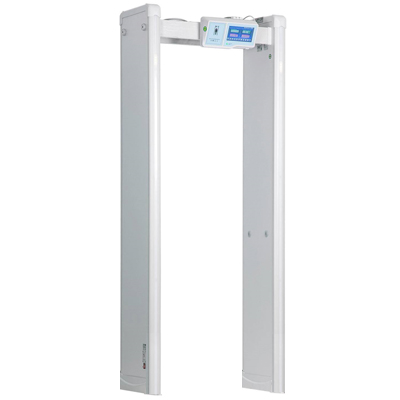

The Bioteknix D4006 is a compact and efficient 6-zone walk-through metal detector, designed with a single door panel for space-saving installation. It provides accurate multi-zone detection, allowing security personnel to quickly identify the exact location of concealed metal objects. The D4006 features adjustable sensitivity levels, intuitive LED indicators, and a user-friendly interface for fast setup and operation. Its durable, tamper-proof construction makes it ideal for high-security environments such as schools, courts, airports, and event venues. With a high throughput rate and reliable performance, the Bioteknix D4006 is a trusted solution for modern access control and threat detection, suitable for indoor or sheltered outdoor use.

Datasheet

share the website to

parameters

Detection Objects Prohibited goods such as mobile phone and metal
In and Out Count Available
Display 6”inch LCD
Vertical dimension 2200x850x430mm
Passage dimension 2000x720x430mm (width can be customized 720 ~ 1500mm)
Package dimension 2270x700x230mm
Working Humidity 99%, no condensation
Working Environment -20°C~85°C
Input AC 100V~240V / 50HZ~60HZ
Output DC 12V/4.2A 12W
Weight Net Weight : 43KG, Gross Weight : 48KG
Input Adaptive Diagnosis System
Automatic Sensitivity of each zone
0~255 Working Frequency
Features * Modular Product
* Easy to Maintenance
* Special Material High-intensity & lightweight
* Production line assembling
* Ultra High Precision
* Door Panel Width : 430mm
* Display : 7inch LCD Touchscreen
* Self-adaptive Adjust System
* Adaptive Diagnosis System
* High Precision Detection
