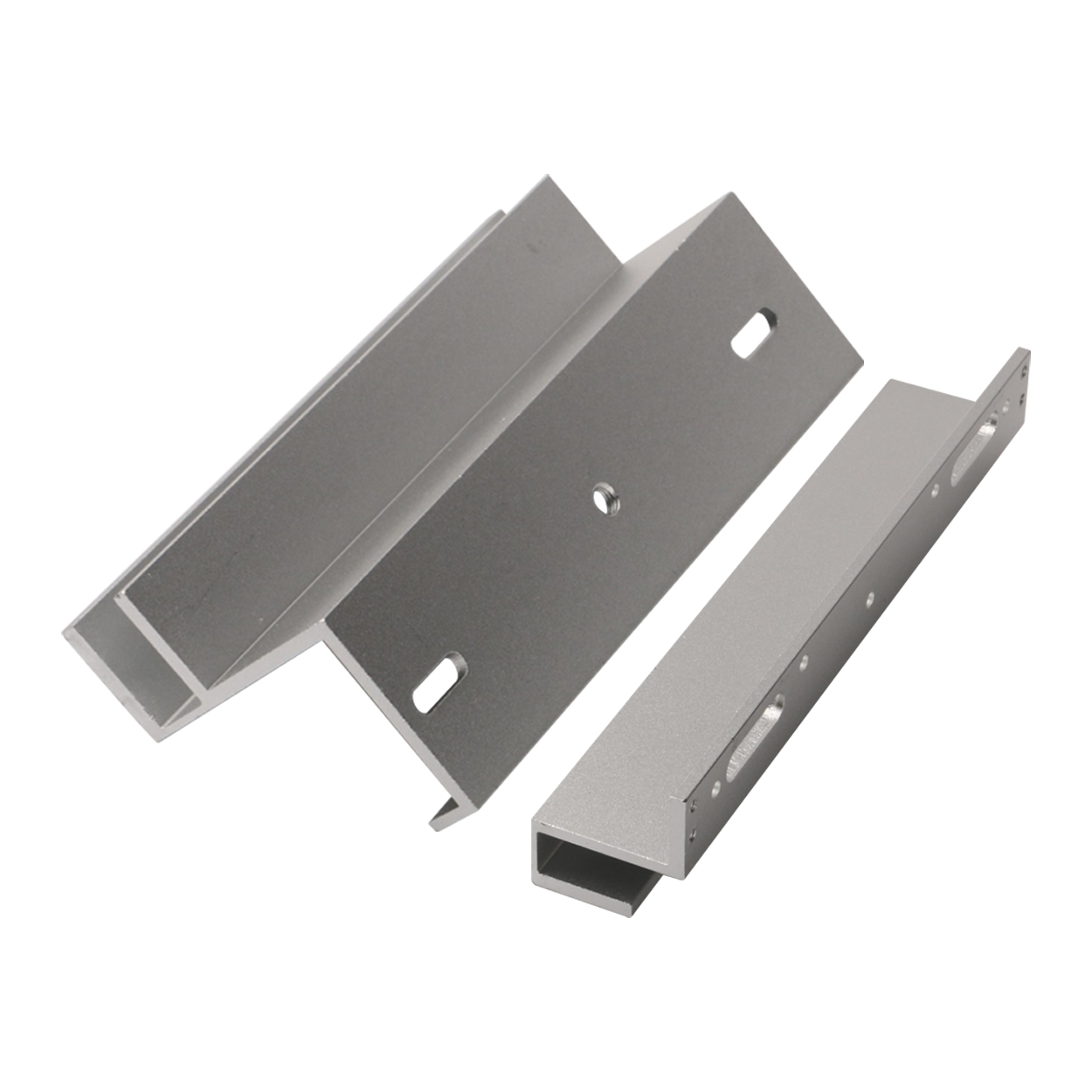

The BIOTEKNIX EML600-8 FGD BRACKET is a heavy-duty mounting accessory designed for secure and professional installation of 600 lbs electromagnetic locks on frameless glass doors and specialized access control applications. Engineered for strength, stability, and durability, the bracket ensures reliable magnetic lock alignment and secure door locking performance in commercial and industrial environments. Manufactured using high-quality metal construction with precision finishing, the BIOTEKNIX EML600-8 FGD BRACKET provides excellent durability, corrosion resistance, and long-term operational reliability. The bracket is specifically designed to support electromagnetic lock installations where standard mounting methods are not suitable, especially for frameless glass door systems and narrow door frame structures.
| Description | UL-style (or top-and-bottom) bracket set for frameless glass doors. |
| Suitable glass thickness | 8–16 mm |
| Required door gap | more than 5 mm [Clearance: A minimum gap of 5 mm is strictly required between the door and the frame (or between double door panels)] |
| Material thickness | 2 mm |
| Magnetic lock mounting hole spacing: 10 mm [Hole Pitch | The center-to-center distance between the mounting screw holes is exactly 10 mm] |
| Total Length | 190 mm |
| Base Width | 53 mm |
| Total Height | 46 mm |
| U-Channel Outer Width | 28 mm |
| U-Channel Inner Opening | 16 mm (Fits 8–16 mm glass with padding) |
| Total Length | 250 mm |
| Armature Face Length | 197 mm |
| Base Profile Width | 32 mm |
| Total Bracket Height | 29 mm |
| U-Channel Outer Width | 25 mm |
| U-Channel Inner Opening | 16 mm (Fits 8–16 mm glass with padding) |
