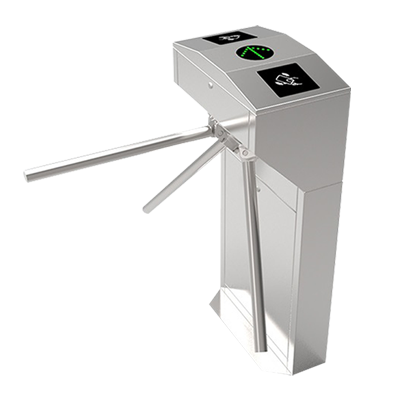

ETA-1000

HEAVY DUTY AUTOMATIC TRIPOD TURNSTILE

The Bioteknix ETA-1000 is a smart, high-precision turnstile designed to provide secure and efficient access control in high-traffic areas. With support for biometric fingerprint scanners, RFID card readers, and facial recognition systems, the ETA-1000 ensures only authorized individuals are granted entry. Its sleek and modern design is available in waist-height and tripod configurations, ideal for office buildings, schools, metro stations, and corporate campuses. Made from durable stainless steel, it is built to withstand continuous use and harsh environments. The ETA-1000 integrates easily with existing access control software and hardware, enabling seamless operation. It includes LED direction indicators, voice prompts, and an emergency break-glass release system to enhance user safety and convenience. Fast throughput speed reduces congestion during peak hours. The Bioteknix ETA-1000 is the perfect solution for organizations seeking a compact, reliable, and user-friendly access control system without compromising on security or performance.

Datasheet Manual

share the website to

parameters

Passage width 550mm
Throughput rate 35 p/m
Power supply 100 ~ 240V
Operational voltage 24V
Max power consumption 30 W
Frequency 50 ~ 60hz
Protection level IP44
Working temperature -25°C ~ +70°C
Electro - magnetic drive DC
Dimension excluding bar 480x280x980 mm
Net weight including bar 44kg
Reader * RFID : Yes | Fingerprint : Yes
* Protocol : RS485 / Mifare/Proxy (Optional) : Yes
Controller * Semi-Auto mode
* Full-Auto mode
* Pure Mechanical mode
* Single or Bi-directional funtion in mechanical and electrical
* Automatic reset of barrier arms after each passage
* Adustable time out delay
Operating Mode * Single passage in the set direction
* Bi-directional passage
* Free passage in the set direction
* Always free or locked
Secondary Controller * Users : 30000 (RFID)
* Fingerprint : 3000
* Transaction storage : 100000
* Integrated Controller : inbio-260
* Relay : 12 V relay for lock
* Support Fire Alarm : Yes
