FB-E-2216

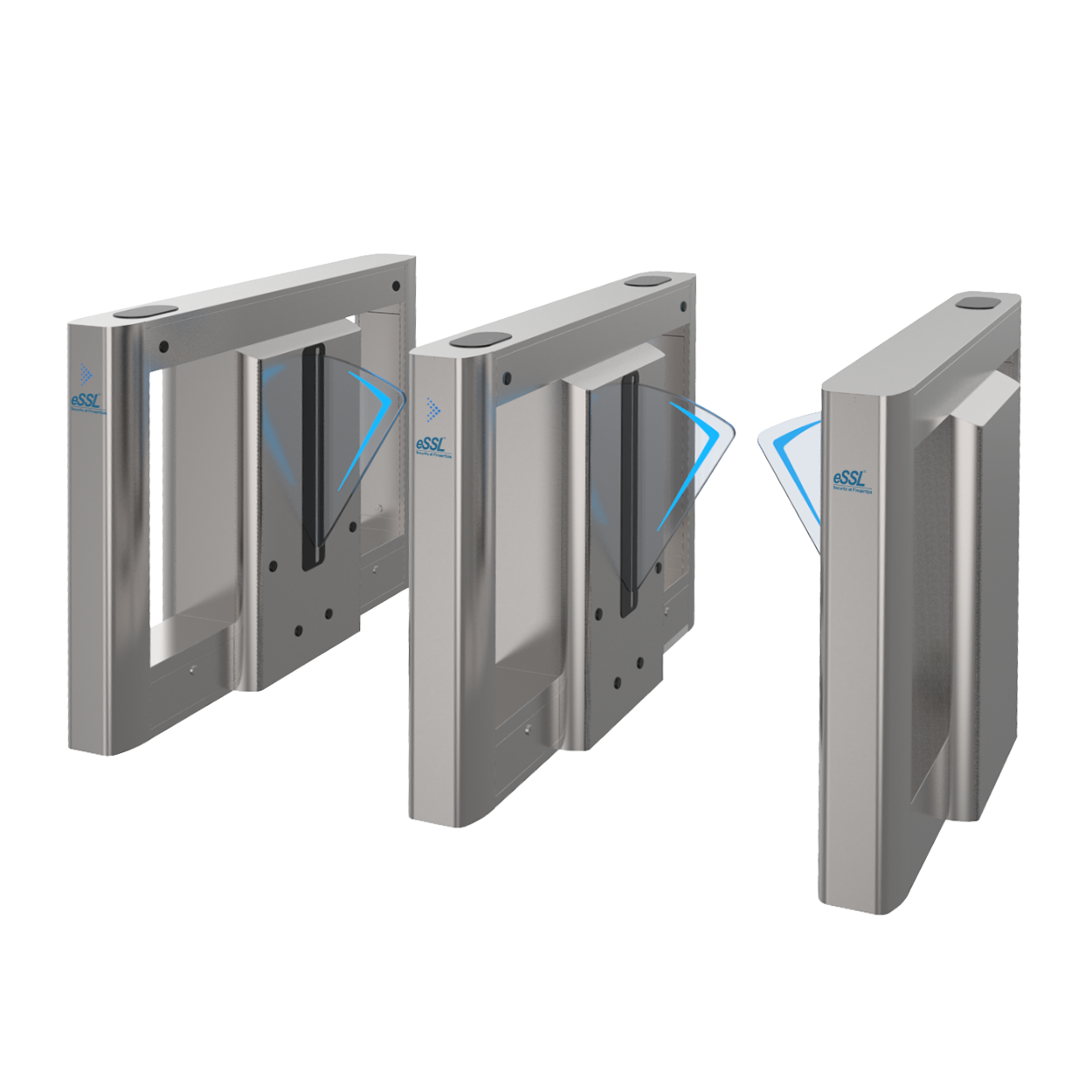

The Bioteknix FB-E-2216 Flap Barrier Gate is a premium access control solution designed for secure and efficient pedestrian management in high-traffic areas. Built with SUS304 stainless steel, it features durable housing and transparent acrylic flaps with LED indicators for direction guidance. Ideal for offices, metro stations, airports, and commercial buildings, the FB-E-2216 supports RFID, biometric, face, and fingerprint recognition systems. With a lane width of 550 mm, fast unlocking time of 0.2 seconds, and a throughput rate of up to 35 users per minute, it ensures smooth and quick access. Advanced features include anti-tailgating, automatic reset, and emergency flap retraction. Operating in temperatures from –28°C to 60°C and offering over 3 million cycles (MCBF), the FB-E-2216 delivers long-term performance with minimal maintenance. Bioteknix ensures reliable, modern, and secure flap barrier gate systems for every environment.

Datasheet

share the website to

parameters

Material Top δ=1.2mm/ body δ=0.9mm SUS304
Size 1400*280*980mm
Power 50W
Pass rate 35-50 persons/minute
Pass width 550mm
Bar Material Acrylic Arm+RGB light
Movement Brushless Movement of Swing Gate
Infrared sensor 6 pairs
Indicator Light RGB light
Drive Unit Brushless DC 30K 40W
Power Supply 24V 150W
Control Unit Brushless control system
Communication Interface Dry contact & RS485
Pass rate 35-50 persons/minute
Temperature -20°C~+70°C
Humidity ≤90% No condensation
IP IP4X
Environment Indoor and outdoor (outdoor with canopy)
Features * Reasonable and reliable design, low noise, smooth operation and long service life
* With function of opening doors automatically under power-off state to meet the need of fire-fighting passage
* With functions of anti-tail, anti-reverse pass and so on
* Card can be set "with memory" or "without memory" functions
* With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set
* With infrared anti-clip function (anti-clip when gate is open or running)
* Compatible with IC, ID card, scanning and face recognition, etc
* Two modes of operation are available: open or closed
* Various working modes are available, including two-way card reading and one-way card reading
