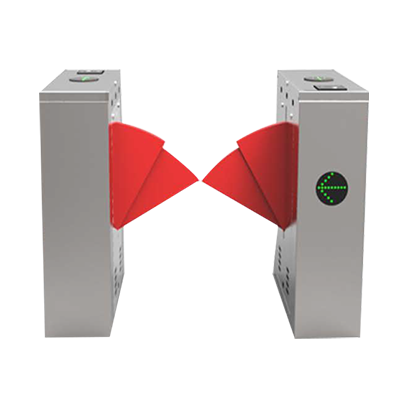

The Bioteknix FB-TL-119 (900mm) is a single-lane wide flap barrier designed for enhanced accessibility in high-traffic areas. With a 900mm passage width, it is ideal for wheelchairs, trolleys, and luggage access. Made from stainless steel with acrylic flaps, it offers strong durability and smooth, low-noise operation. The system features anti-tailgating, anti-reverse, and dual anti-clipping protection using infrared and mechanical sensors. Operating on a 24V DC electromagnetic drive, it consumes just 30W and supports a flow rate of up to 35 persons per minute. It integrates with IC/ID/barcode/magnetic card systems and allows adjustable delay timing (1–60 seconds). In case of emergencies or power failure, the barrier opens automatically for safety. Rated IP44 and operable in temperatures from –25°C to +70°C, it is ideal for metros, airports, hospitals, and corporate buildings. The FB-TL-119 (900mm) combines accessibility, safety, and performance in one reliable solution.
| Passage width (Max) | ≤900mm |
| Throughput rate | 35 p/m |
| Power supply | 100 ~ 240V |
| Operational voltage | 24V |
| Max Power Consumption | 30 W |
| Frequency | 50 ~ 60hz |
| Protection Level (IP) | ≥ 44 |
| Working temperature | -25°C ~ +70°C |
| Electro - magnetic drive | DC |
| Dimension excluding bars | 800 X 280 X 960 mm |
| Features | * Use IC cards, ID cards, bar code or magnetic cards as automatic identification system * Display has been in use for statistics and numbers * With voice and strobe light alerts * A combination of infrared sensors and police anti-illegal entry into pedestrian access * Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping * The barrier can be set to delay closing in 1 ~ 60s after a valid card reading * Single passage in the set direction * Bi-directional single passage * Plastic toughened glass * Always free or locked |
