FB-TL-2000

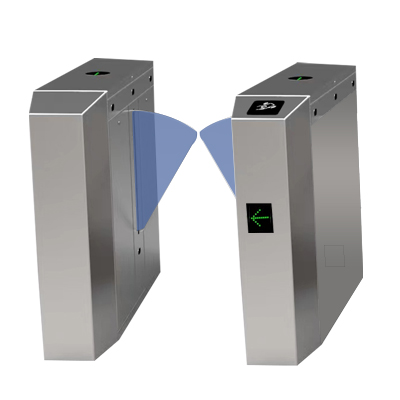

The Bioteknix FB-TL-2000 is a premium single-lane flap barrier designed for secure and efficient pedestrian access control. Built with SUS304 stainless steel and acrylic flaps, it offers a sleek look with reliable performance. It supports multiple authentication modes including RFID, fingerprint, face, and vein recognition. With a fast unlock time of 0.2 seconds, it handles up to 35 persons/min via RFID, making it ideal for high-traffic areas. The system operates on 24V DC and supports auto-opening in emergencies or power failure. Its compact size (1200×280×980 mm), IP44 rating, and operating range of –28°C to 60°C make it suitable for indoor or sheltered outdoor use. Features include LED indicators, medium-level security, and a lifespan of over 2 million cycles (MCBF). Easy to integrate with access control systems, the FB-TL-2000 is perfect for offices, metro stations, airports, and other commercial facilities requiring speed, safety, and reliability.

Datasheet Manual

share the website to

parameters

Power Requirements AC100~120V/200~240V,50/60Hz
Working Temperature -28°C to 60°C
Working Humidity 5%~80%
Protection level IP44
Working Environment Indoor/outdoor (if sheltered)
Operational voltage 24V
RFID Maximum 35/ minute
Fingerprint Maximum 25/ minute
Face Maximum 11/ minute
Vein Maximum 23/ minute
Lane width(mm) 550
Input Dry Contact
Unlock Time 0.2 sec
Dimensions(mm) L=1200,W=280,H=980
Net Weight(kg) 100
LED Indicator Yes
Cabinet Material SUS304 Stainless Steel
Lid Material SUS304 Stainless Steel
Barrier Material Acrylic
Barrier Movement Retracting
Emergency Mode Yes
Security Level Medium
MCBF 2 million
