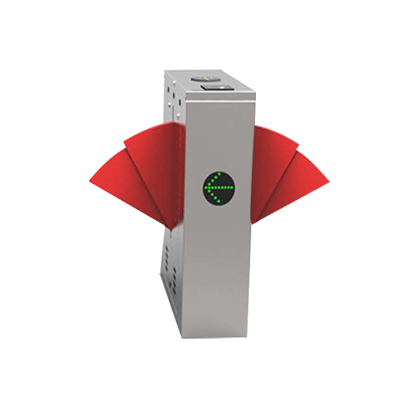

FB-TL-219-(900mm)

The Bioteknix FB-TL-219 (900mm) is a wide single-lane flap barrier designed for secure and accessible pedestrian entry. With a 900mm passage width, it supports smooth access for wheelchairs, trolleys, and luggage, making it ideal for airports, hospitals, and commercial buildings. Built with stainless steel and toughened plastic flaps, it offers long-lasting durability and modern aesthetics. The system features anti-tailgating, anti-reverse entry, and dual anti-clipping protection using infrared sensors and mechanical resistance. It operates on a 24V DC electromagnetic drive with just 30W power consumption and supports up to 35 users per minute. In emergencies or power failure, the flaps open automatically for safety. It supports IC/ID/barcode/magnetic card integration, voice/strobe alerts, and adjustable delay settings (1–60s). Rated IP44 and operable from –25°C to +70°C, the FB-TL-219 (900mm) is a reliable, accessible, and efficient access control solution.

Datasheet Manual

share the website to

parameters

Passage width (Max) ≤900mm
Throughput rate 35 p/m
Power supply 100 ~ 240V
Operational voltage 24V
Max Power Consumption 30 W
Frequency 50 ~ 60hz
Protection Level (IP) ≥ 44
Working temperature -25°C ~ +70°C
Electro - magnetic drive DC
Dimension excluding bars 800 X 280 X 960 mm
Features * Use IC cards, ID cards, bar code or magnetic cards as automatic identification system
* Display has been in use for statistics and numbers
* With voice and strobe light alerts
* A combination of infrared sensors and police anti-illegal entry into pedestrian access
* Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping
* The barrier can be set to delay closing in 1 ~ 60s after a valid card reading
* Single passage in the set direction
* Bi-directional single passage
* Plastic toughened glass
* Always free or locked
