FB-Y-1000
SINGLE LANE FLAP BARRIER

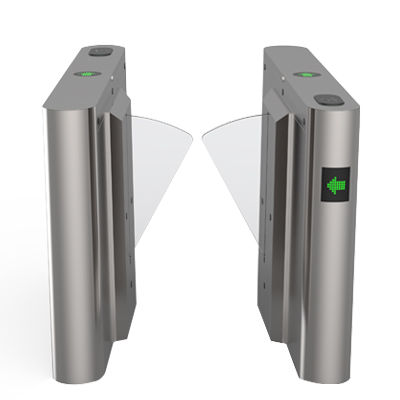

The Bioteknix FB-Y-1000 is a compact and efficient single-lane flap barrier designed for secure pedestrian access control. Made with high-quality SUS304 stainless steel and acrylic wings, it offers smooth, silent operation with enhanced durability. With a standard passage width of 550mm and a throughput capacity of up to 35 persons per minute, it is ideal for offices, metros, airports, and commercial spaces. The system supports various authentication methods including RFID, fingerprint, barcode, and facial recognition. Safety features include anti-tailgating, anti-reverse, and dual anti-clipping with infrared sensors. It operates on 24V DC with low power consumption and includes voice prompts and LED indicators. In case of power failure or emergency, the flaps open automatically for safe evacuation. Compact, user-friendly, and secure, the FB-Y-1000 provides a reliable access solution for modern infrastructure where space, speed, and safety are essential.
share the website to
The Bioteknix FB-Y-1000 is a compact and efficient single-lane flap barrier designed for secure pedestrian access control. Made with high-quality SUS304 stainless steel and acrylic wings, it offers smooth, silent operation with enhanced durability. With a standard passage width of 550mm and a throughput capacity of up to 35 persons per minute, it is ideal for offices, metros, airports, and commercial spaces. The system supports various authentication methods including RFID, fingerprint, barcode, and facial recognition. Safety features include anti-tailgating, anti-reverse, and dual anti-clipping with infrared sensors. It operates on 24V DC with low power consumption and includes voice prompts and LED indicators. In case of power failure or emergency, the flaps open automatically for safe evacuation. Compact, user-friendly, and secure, the FB-Y-1000 provides a reliable access solution for modern infrastructure where space, speed, and safety are essential.
share the website to
parameters
| Material | 1.2/1.0mm SUS304 |
| Size | 1400*280*950mm |
| Sensor pairs | 6 pairs |
| Pass rate | 35p/m |
| Pass width | 550mm |
| Input voltage | 100V~240V |
| Motor type | DC brushless motor |
| Environment | -20~+70℃ |
| Power supply | 24V 150W |
| Net weight | 60kg |
| IP Rating | 56 |
| MCBF | 5 Million |
| Features | * Reasonable and reliable design, low noise, smooth operation and long service life * With function of opening doors automatically under power-off state to meet the need of fire-fighting passage * With functions of anti-tail, anti-reverse pass and so on * Card can be set "with memory" or "without memory" functions * With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set * With infrared anti-clip function (anti-clip when gate is open or running) * Compatible with IC, ID card, scanning and face recognition, etc * Two modes of operation are available: open or closed * Various working modes are available, including two-way card reading and one-way card reading, etc |
