FB-Y-1200
MULTI-LANE FLAP BARRIER

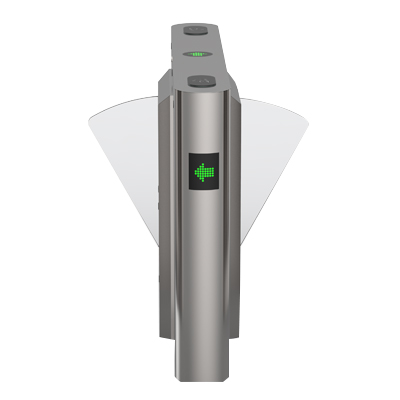

The Bioteknix FB‑Y‑1200 is a multi‑lane flap barrier tailored for high‑traffic security entry points. Built with durable 1.2 mm/1.0 mm SUS304 stainless steel, it measures 1400×280×950 mm and supports a standard 550 mm wide passage. Driven by a 24 V 150 W DC brushless motor, it achieves a smooth pass rate of 35 persons per minute. Featuring six pairs of sensors, it offers reliable anti‑tailgating, anti‑reverse, and infrared anti‑clipping protection, and opens automatically on power failure to meet fire-safety requirements. The barrier supports memory and non‑memory card modes and auto‑resets if passage isn’t completed in time. Compatible with IC, ID, barcode, and face recognition systems, it excels in environments ranging from –20 °C to +70 °C. Weighing approximately 60 kg with an IP56 rating and an MCBF of 5 million cycles, it delivers enduring performance. The FB‑Y‑1200 combines accessibility, safety, and durability in one high‑efficiency design.
share the website to
The Bioteknix FB‑Y‑1200 is a multi‑lane flap barrier tailored for high‑traffic security entry points. Built with durable 1.2 mm/1.0 mm SUS304 stainless steel, it measures 1400×280×950 mm and supports a standard 550 mm wide passage. Driven by a 24 V 150 W DC brushless motor, it achieves a smooth pass rate of 35 persons per minute. Featuring six pairs of sensors, it offers reliable anti‑tailgating, anti‑reverse, and infrared anti‑clipping protection, and opens automatically on power failure to meet fire-safety requirements. The barrier supports memory and non‑memory card modes and auto‑resets if passage isn’t completed in time. Compatible with IC, ID, barcode, and face recognition systems, it excels in environments ranging from –20 °C to +70 °C. Weighing approximately 60 kg with an IP56 rating and an MCBF of 5 million cycles, it delivers enduring performance. The FB‑Y‑1200 combines accessibility, safety, and durability in one high‑efficiency design.
share the website to
parameters
| Material | 1.2/1.0mm SUS304 |
| Size | 1400*280*950mm |
| Sensor pairs | 6 pairs |
| Pass rate | 35p/m |
| Pass width | 550mm |
| Input voltage | 100V~240V |
| Motor type | DC brushless motor |
| Environment | -20~+70℃ |
| Power supply | 24V 150W |
| Net weight | 60kg |
| IP Rating | 56 |
| MCBF | 5 Million |
| Features | * Reasonable and reliable design, low noise, smooth operation and long service life * With function of opening doors automatically under power-off state to meet the need of fire-fighting passage * With functions of anti-tail, anti-reverse pass and so on * Card can be set "with memory" or "without memory" functions * With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set * With infrared anti-clip function (anti-clip when gate is open or running) * Compatible with IC, ID card, scanning and face recognition, etc * Two modes of operation are available: open or closed * Various working modes are available, including two-way card reading and one-way card reading, etc |
