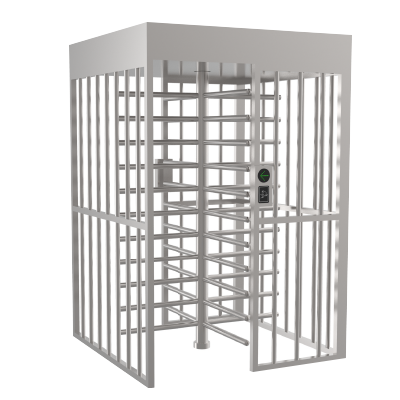

FHT-TL-132

FULL HEIGHT TURNSTILE - SINGLE DOOR

The FHT-TL-132 is a full-height, single-door turnstile designed for high-security access control in areas like airports, stadiums, and government buildings. Built from durable SUS 304 stainless steel, it offers a strong physical barrier with a passage width of ~650 mm and throughput of up to 30 people per minute. The turnstile supports bi-directional control, integrates with RFID, biometric, and access card systems, and operates with 24 V DC power at ≤30 W. It features LED indicators, anti-reverse rotation, and emergency drop-arm function during power failure. Unlock time is just 0.2 seconds, and entry permissions auto-cancel if not used in time. Its IP-rated design and –15 °C to +55 °C operating range ensure durability in both indoor and semi-outdoor environments. Ideal for controlling unauthorized entry, the FHT-TL-132 delivers reliable, tamper-resistant performance for critical access points.

Datasheet Manual

share the website to

parameters

Material SUS304
Size 1500*1450*2250mm
Unlock Time 0.2s
Pass Rate 30p/m
Pass width 650mm
Input voltage 100V~240V
Driving voltage 24V
Environment 15~+55℃
Power 30W
Input signal Dry contact
Features * Stable and reliable mechanical locking device, precise movement and turntable combination structure with special technology.
* With two-way traffic function, the brake lever steering is divided into two-way and one-way
* With the function of power-off and opening, in case of emergency, the cross shaft rotation shaft is switched from locked to free passage mode, and pedestrians can pass quickly to meet the requirements of the fire protection passage
* After the pedestrian reads the valid card, if the system does not pass within the specified time, the system will automatically cancel the pedestrian's access permission
* Install a two-way arrow indicator to indicate the passing status, whether passing or not
* There is a DIP switch on the control panel, which can adjust the pass delay time through an algorithm, and can also be adjusted to a memory mode, for example: swiping a valid card five times and passing five people
* Anti-reverse device function prevents the rotating unit from rotating in the opposite direction to the original direction
