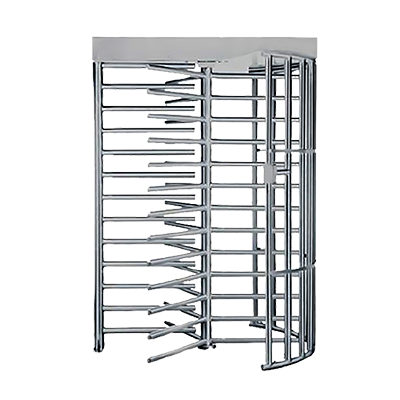

FHT-TL-139

FULL HEIGHT TURNSTILE - SINGLE DOOR

The Bioteknix FHT-TL-139 is a full-height, single-door turnstile designed for high-security areas such as airports, offices, stadiums, and government buildings. Made from durable SUS 304 stainless steel, it features a three-arm, 120° rotation mechanism that ensures controlled one-person entry per activation. With dimensions of approx. 1630 × 1500 × 2310 mm and a passage width of about 650 mm, it provides a secure physical barrier. The turnstile operates on 100–240 V AC (24 V DC internally), with power consumption around 30 W. It supports up to 30 users per minute and functions reliably in extreme conditions (–25 °C to +70 °C). The Bioteknix FHT-TL-139 integrates with biometric and RFID systems via RS485 or TCP/IP, supports LED indicators, anti-reverse rotation, and drops arms automatically in emergencies. It offers adjustable delay timing, unidirectional or bidirectional use, and long-term durability for demanding access control environments.

Datasheet Manual

share the website to

parameters

Power Supply 100V ~ 240V AC
Control Circuit 24V DC
Power Consumption 30W
Operating Temper range -25°c ~ +70°c
Protection level (IP) > 44
MCBF 5 Million Cycles
Humidity 95%
Hydraulic damper Adjustable
Solenoid 24V DC 100%
Throughout Person
Communication Interface RS485 or TCP IP
passage width < 650mm
Frequency < 50Hz or 60Hz
Electro -magnetic drive DC
Section Version 120 degrees
No of arms 3 arms
Dimensions 1630 x 1500 x2310mm
Net weight 220kg
Features * Designed for secure operation wish aesthetics inland
* Minimal exposed hardware
* Corrosion protected S/S frame
* Heavy Gauge materials ASTM Standard
* Consists of rotor assembly, shield Assembly, barrier section, mechanism housing & ceiling plate
* The barrier can be set to delay closing in 1 ~ 60s after a valid card reading
* Single passage in the set direction
* Bi-directional single passage
* Free passage in the direction
* Always free or locked
