FHT-TL-537

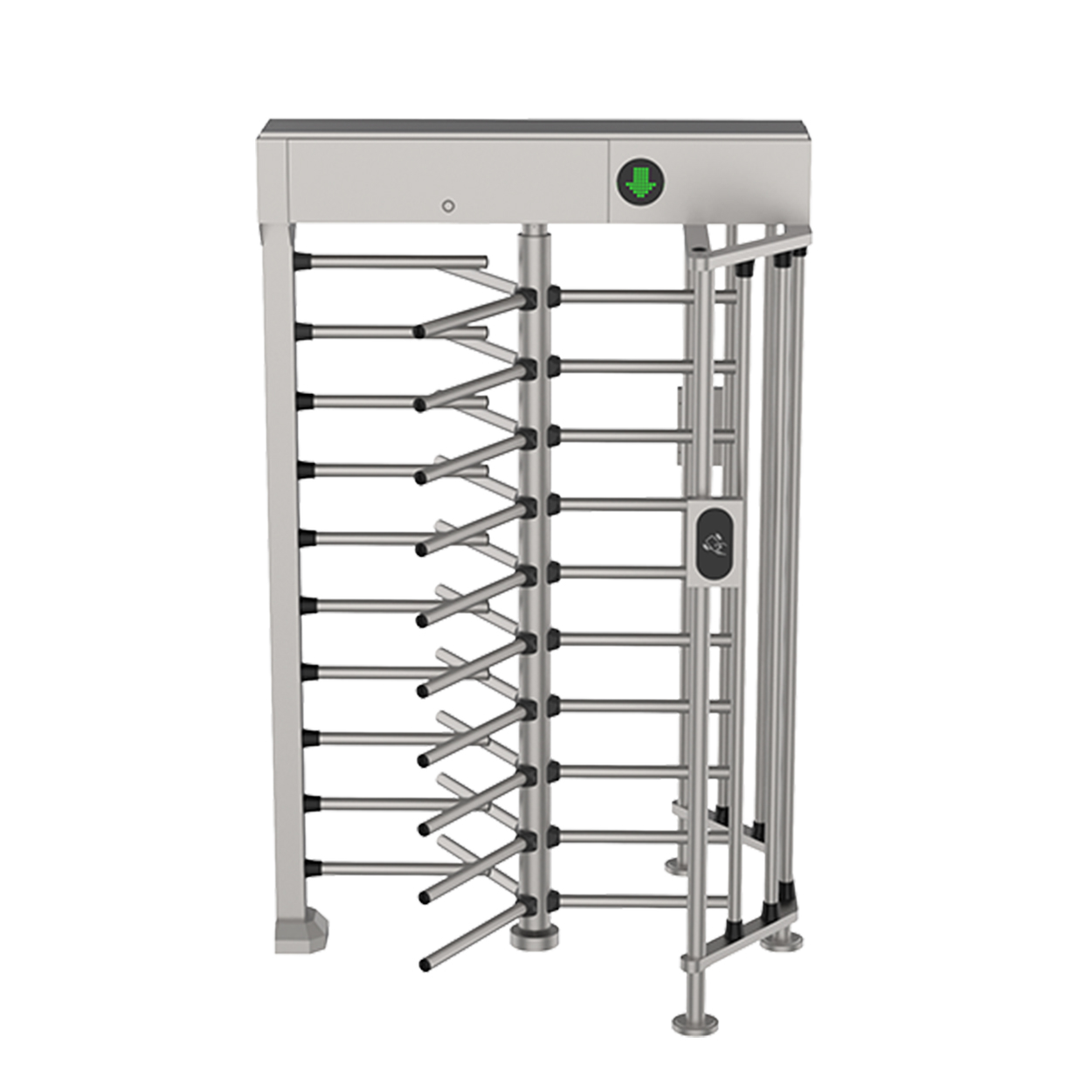

The Bioteknix FHT-TL-537 is a full-height turnstile built for high-security access control in demanding environments. Crafted from SUS304 stainless steel, it offers advanced anti-tailgating and anti-reverse functions, with infrared sensors for anti-clipping protection. Designed for indoor and outdoor use, it features low-noise operation, fast throughput, and automatic unlocking during power failure or fire alarms. The system supports memory card mode and customizable delay settings, ensuring flexibility for varied access scenarios. With an IP54 rating and robust structure, it’s ideal for corporate offices, stadiums, and transport terminals. Integration is seamless via RS485 or dry-contact interfaces. The FHT-TL-537 delivers reliable, secure, and efficient entry management, making it the smart choice for modern infrastructure. Trust Bioteknix for precision-engineered access control solutions.

Datasheet Manual

share the website to

parameters

Size(L*W*H) 1400*1300*2230mm
Pass width 600mm
Power 50W
Material Body δ=1.2mm / fence ф=1.0mm SUS304
Movement molding full-height turnstile movement
Sensor Limited sensor
Indicator Light Dynamic indicator light
Drive Unit Anti-burn solenoid
Power Supply 24V 150W
Control Unit Main board
Communication Interface Dry contact & RS485
Pass rate 35-50 persons/minute
Temperature -20℃~+70℃
Humidity ≤90% No condensation
IP IP4X
Environment Indoor and outdoor
Features * Reasonable and reliable design, low noise, smooth operation and long service life
* With function of opening doors automatically under power-off state to meet the need of fire-fighting passage
* With functions of anti-tail, anti-reverse pass and so on
* Card can be set "with memory" or "without memory" functions
* With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set
* With infrared anti-clip function (anti-clip when gate is open or running)
* Compatible with IC, ID card, scanning and face recognition,etc
* Two modes of operation are available: open or closed
* Various working modes are available, including two-way card reading and one-way card reading,etc
