HB-426

HB-426 (HYDRAULIC BOLLARD) / HBC-600 (CONTROL UNIT)

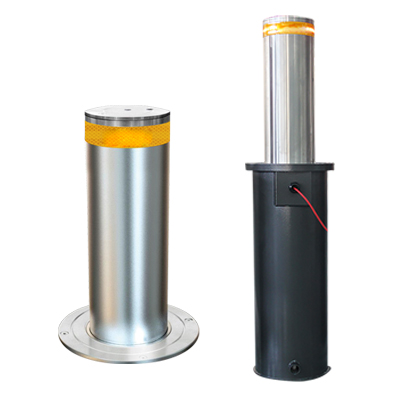

The Bioteknix HB-426 is a high-security hydraulic retractable bollard designed for effective vehicle access control in sensitive areas such as government buildings, airports, hotels, metros, and commercial premises. Built with high-strength steel and a corrosion-resistant finish, the HB-426 ensures durability and reliable performance in all weather conditions. It features a built-in hydraulic unit for fast UP/DOWN operation, controlled via remote, RFID, or access systems. With customizable cylinder diameter and height, this automated bollard offers strong anti-collision resistance, quick response time (3–5 seconds), and seamless integration with third-party systems. Ideal for enhancing safety and managing traffic flow, the HB-426 is perfect for locations that require robust, automated security solutions. Choose Bioteknix for advanced perimeter protection and reliable vehicle control.

Datasheet Manual

share the website to

parameters

Working power supply AC220V
Drive mode Electromechanical and hydraulic electrical integration
Working temperature -30℃ ~ + 55℃
Protection class IP68
Running speed 4S
Emergency mode manual up and down/battery up and down (optional)
Maximum thrust 200Kg
Column height 600mm (customizable800mm to 1000mm)
Cylinder diameter 220mm (can be customized 270mm)
Column wall thickness 6, 8, 10mm
Cylinder material 304 stainless steel tube
Foundation box material Q235
Anti-corrosion process electrophoresis + plastic spraying
Maximum passing pressure 50T
Reflective warning 3M reflective film (50mm wide)
Warning light LED lamp beads (standard configuration) anti-collision rubber coating + LED light strip (optional)
HBC-600 (control unit) * No of Bollards : 6no
* Input power : AC 220V
* Output voltage : DC36V
* Working temperature : -300~550
* Protection class ; IP54
* Remote control distance : ≥50 meters
* Control quantity : one for two/one for four/one for six
* Control mode : remote control/manual button box/remote control
* System interface : ground sense coil, infrared sensor, TCP/IP interface
