JS-32E (PROXIMITY)

STANDALONE ACCESS CONTROL

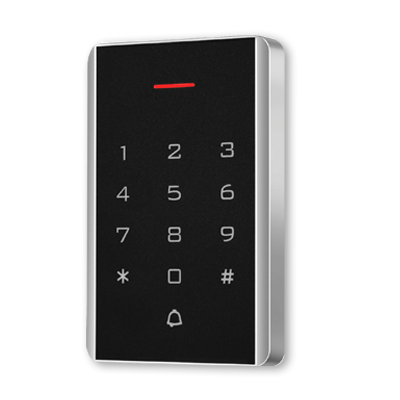

The Bioteknix JS-32E (Proximity) is a compact, reliable standalone access control system that uses 125kHz EM proximity card technology for secure and contactless entry. Designed for small to medium-sized facilities, the JS-32E supports card and PIN authentication modes, making it ideal for offices, residential complexes, server rooms, and storage areas. With no need for a PC or software, it operates independently, storing user data locally. The sleek, weather-resistant design allows for indoor and outdoor installation, while the built-in relay supports direct connection to electric locks and alarms. Easy to install and manage, the Bioteknix JS-32E offers an affordable, efficient solution for access control.

Datasheet Manual

share the website to

parameters

Card type EM
Working voltage DC12V+10%
Reading Range 3-6cm
Humidity 10% to 90% RH
Door Opening Time 0-99s (Adjustable)
Static electricity < 30mA
Ambient temperature -45°C ~ 60°C
Electric lock output < 1A
Short-circuit Protect <100μ5
Dimensions 114*45*18mm
Feature * Wiegand 26 input and output
* Capacity :2000users, button keypad Plastic case, indoor used
* Access Way : Pin, Card, Pin+Card
