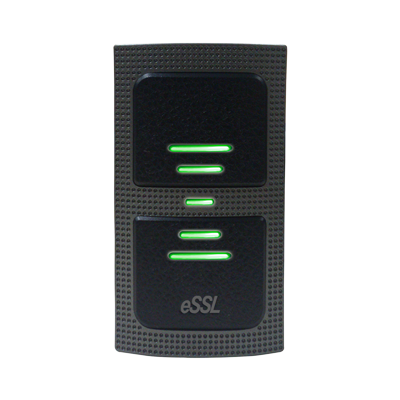

KR500-E

PROXIMITY CARD READER

The Bioteknix KR500-E is a high-performance RFID access control reader designed for secure, fast, and contactless identification. Supporting 125kHz EM cards, it provides reliable authentication in various access control systems. With a compact, waterproof, and vandal-resistant design (IP65 rated), the KR500-E is ideal for both indoor and outdoor installations at offices, residential buildings, warehouses, and industrial sites. It features Wiegand 26/34 output, making it compatible with most standard access control panels. The Bioteknix KR500-E delivers fast read speeds, easy installation, and long-term durability, making it a trusted solution for professional-grade access control environments.

Datasheet

share the website to

parameters

KR500-E 125 KHz Proximity card reader
Read Range Up to 10CM
Connectivity Wiegand
Reading Time (Card) ≤200ms
Power / Current DC 6-14V / Max.70mA
Input Port 2ea (External LED Control)
Output Format 26bit Wiegand (default) / 34bit Wiegand (default)
LED Indicator 2 Color LED Indicators(Red and Green)
Beeper Yes
Operating Temperature 20° C to +65°C
Operating Humidity 10% to 90% relative humidity non-condensing
Color Black
Dimension(WxHxT) 116 x 75 x 17.3mm
Weight 50g
