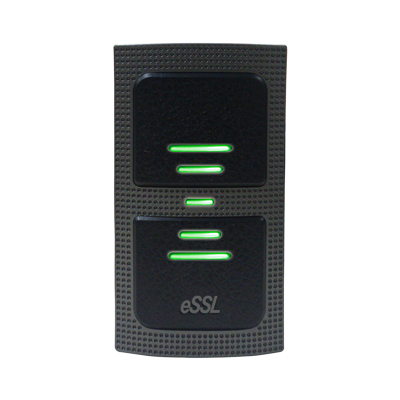

KR500-M

MIFARE CARD READER

The Bioteknix KR500-M is a durable and high-performance MIFARE card reader designed for professional access control applications using 13.56MHz smart card technology. It supports ISO14443A MIFARE cards for secure, contactless identification in offices, campuses, labs, and government buildings. With Wiegand 26/34 output, the KR500-M integrates easily with most standard access control panels. Its IP65-rated waterproof and dustproof design ensures reliable performance in both indoor and outdoor environments. Featuring fast read response and a compact, tamper-resistant build, the Bioteknix KR500-M is a trusted choice for advanced access control systems requiring secure MIFARE card authentication.

Datasheet

share the website to

parameters

KR500M 13.56 MHz Mifare card reader
Read Range Up to 5CM
Connectivity Wiegand
Reading Time (Card) ≤200ms
Power / Current DC 6-14V / Max.70mA
Input Port 2ea (External LED Control)
Output Format 26bit Wiegand (default) / 34bit Wiegand (default)
LED Indicator 2 Color LED Indicators(Red and Green)
Beeper Yes
Operating Temperature 20° C to +65°C
Operating Temperature 20° C to +65°C
Operating Humidity 10% to 90% relative humidity non-condensing
Color Black
Dimension(WxHxT) 116 x 75 x 17.3mm
Weight 50g
