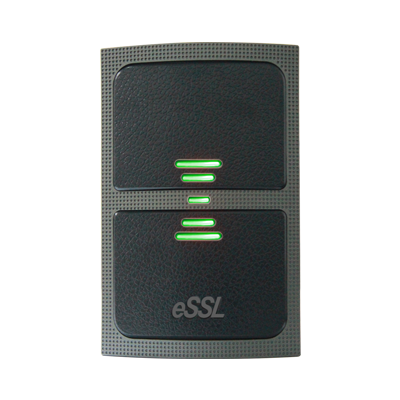

KR503-E

PROXIMITY CARD READERS

The Bioteknix KR503-E is a compact and high-performance RFID proximity card reader designed for secure access control applications. Supporting 125kHz EM proximity cards, it enables fast and contactless authentication in offices, residential buildings, industrial facilities, and commercial sites. The KR503-E features Wiegand 26/34 output, allowing seamless integration with most standard access control systems and panels. With its IP65-rated waterproof and dustproof housing, this reader is ideal for both indoor and outdoor installations. The Bioteknix KR503-E delivers reliable performance, quick response time, and easy installation, making it an efficient and cost-effective solution for modern access control environments.

Datasheet

share the website to

parameters

KR503E 125KHz Proximity card reader
Read Range Up to 10CM
Communication RS485
Reading Time (Card) ≤300ms
Power / Current DC 6-14V / Max.70mA
Input Port 2ea (External LED Control, External Buzzer Control)
Output Format 26bit Wiegand (default) / 34bit Wiegand (default)
LED Indicator 2 Color LED Indicators(Red and Green)
Beeper Yes
Operating Temperature 20° C to +65°C
Operating Temperature 20° C to +65°C
Operating Humidity 10% to 90% relative humidity non-condensing
Color Black
Dimension(WxHxT) 116 x 75 x 17.3mm
