SA32-E

STANDALONE ACCESS CONTROL DEVICE WITH CONTACT-LESS SMART CARD

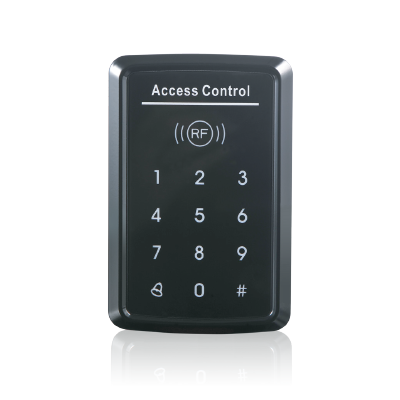

The Bioteknix SA32-E is a robust standalone access control system designed for secure and contactless entry using 125kHz EM proximity cards and PIN codes. Built for simplicity and performance, it operates independently without requiring a computer or network connection. The SA32-E supports up to 1,000 users, making it ideal for offices, residences, server rooms, and small to medium-sized facilities. Featuring a weather-resistant design and IP65-rated housing, it is suitable for both indoor and outdoor installation. With easy programming via keypad and built-in relay for electric lock control, the Bioteknix SA32-E offers a cost-effective, reliable, and secure solution for everyday access control needs.

Datasheet

share the website to

parameters

Operating voltage DC 12V±10%
Operating current < 100mA
Dimensions 121×78×23mm
Weight 110g
Temperature 0°C - 60°C
Operating humidity 20% - 80%
Storage 1000 users
Card type (alternative) EM(ID) card (IC card for options)
Card Reading Distance 1 - 15CM
Feature * Access by Card, PIN, or Card & PIN
* Has 1 Relay output and 1 PUSH (low) output
* Has 1 door button Port and 1 doorbell Port
