SA32-M

STANDALONE ACCESS CONTROL DEVICE WITH CONTACT-LESS SMART CARD

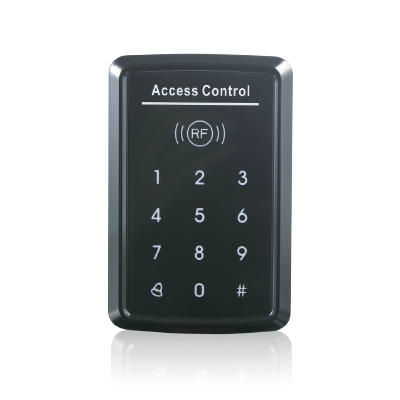

The Bioteknix SA32-M is a high-security standalone access control system that utilizes 13.56MHz MIFARE smart card technology for secure, contactless user authentication. Ideal for offices, schools, labs, and residential buildings, the SA32-M supports MIFARE card and PIN access, storing up to 1,000 users without the need for a PC or software. Its IP65-rated weatherproof housing makes it perfect for both indoor and outdoor installations. With a built-in relay for direct lock control and a tamper-resistant design, it ensures reliable performance and enhanced security. Easy to install and program via keypad, the Bioteknix SA32-M delivers a modern, efficient, and secure access control solution.

Datasheet

share the website to

parameters

Operating voltage DC 12V±10%
Operating current < 100mA
Dimensions 121×78×23mm
Weight 110g
Temperature 0°C - 60°C
Operating humidity 20% - 80%
Storage 1000 users
Card type (alternative) EM(ID) card (IC card for options)
Card Reading Distance 1 - 15CM
Feature * Access by Card, PIN, or Card & PIN
* Has 1 Relay output and 1 PUSH (low) output
* Has 1 door button Port and 1 doorbell Port
