SB-ES-3216-2

MULTI LANE SWING BARRIER

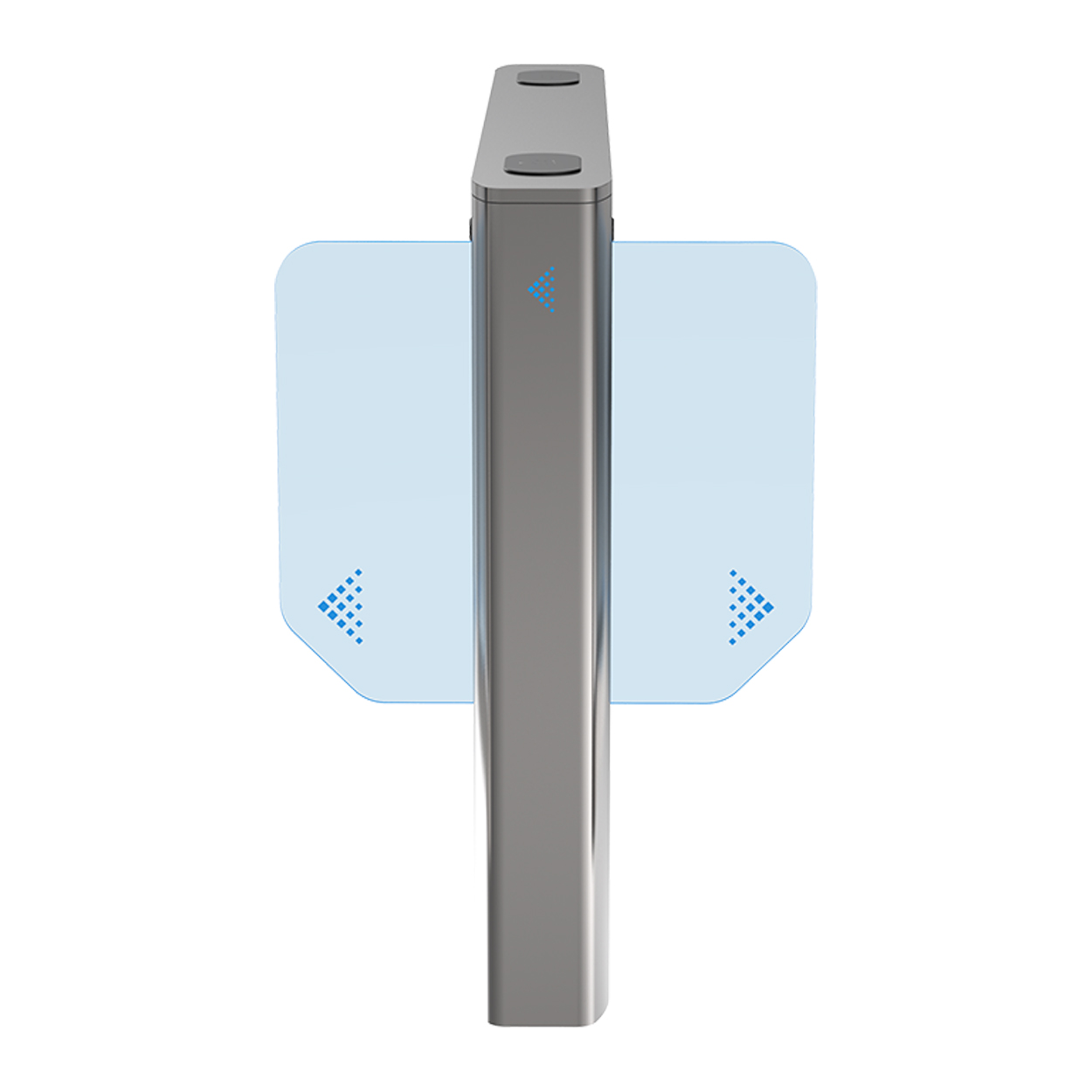

The Bioteknix SB-ES-3216-2 Multi-Lane Swing Barrier is a robust access control solution designed for high-traffic areas such as metro stations, airports, corporate offices, and commercial complexes. Made from high-quality 304 stainless steel and clear acrylic panels, it delivers a sleek appearance with long-term durability. Featuring a brushless DC motor, this barrier ensures silent and efficient operation with a pass rate of up to 50 persons per minute. Infrared sensors provide anti-tailgating, anti-reverse entry, and safety from accidental injury. The system supports RFID, face recognition, barcode, and QR access, with auto-reset and memory functions. In emergencies or power failure, the barrier opens automatically for safe evacuation. The SB-ES-3216-2 is easy to integrate with all major access control systems and supports two-way or one-way configuration. Ideal for multi-lane setups, this Bioteknix model combines advanced security with user convenience.

Datasheet Manual

share the website to

parameters

Size(L*W*H) 1400*160*980mm
Fuselage material Top cover 1.2mm+body 0.9mm 304 brushed plate
Diaphragm material 8mm clear acrylic
Baffle material 10mm clear acrylic
Pass width 600-900mm
Movement Brushless swing brake integrated movement
Power supply 24V 150W
Input voltage AC100V~240V,50/60HZ
Equipment power55W
Drive motor Fengdun DC brushless 90K 30W
Pass rateOpen 50 people/min; Usually closed 35 people/min
Speed of opening and closing Adjustable from 0.5s to 1.5s
Sensor pairs 6 pairs
Pilot lamp Three color light panel + three color light strip
Communication modeDry contact
Controls 12V brushless simplified board + electric control box + mesh board box
Temperature -20℃~+70℃ | Noise : ≤65dB
Humidity ≤90% No condensation
Class of protectionIP4X
Features * Reasonable and reliable design, low noise, smooth operation and long service life
* With function of opening doors automatically under power-off¬ state to meet the need of fire-fighting passage
* With functions of anti-tail, anti-reverse pass and so on
* Card can be set "with memory" or "without memory" functions
* With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set
* With infrared anti-clip function (anti-clip when gate is open or running)
* Compatible with IC, ID card, scanning and face recognition, etc
* Two modes of operation are available: open or closed
* Various working modes are available, including two-way card reading and one-way card reading, etc.
