SB-ES-3216

SINGLE LANE SWING BARRIER

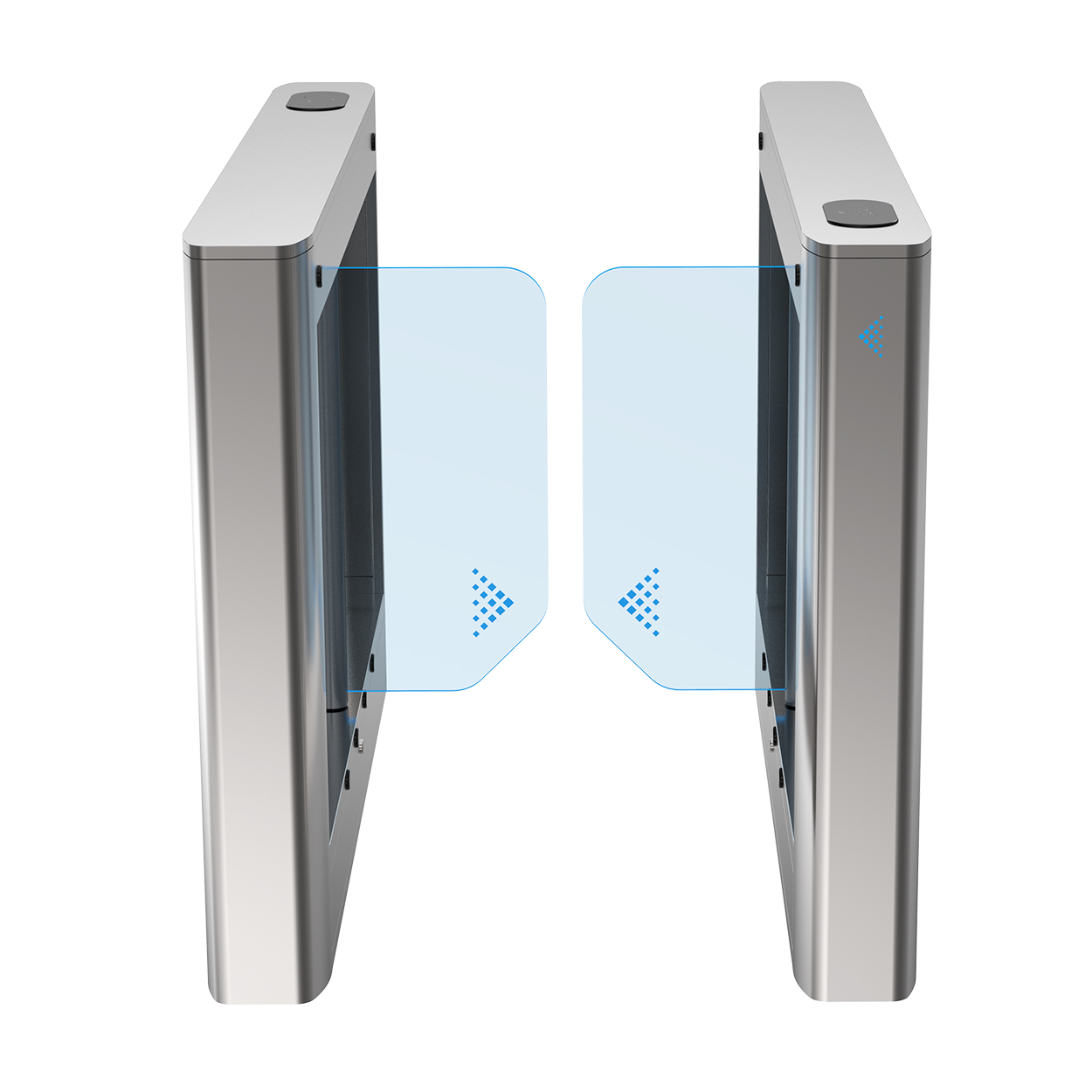

The Bioteknix SB-ES-3216 Single Lane Swing Barrier is a high-performance access control solution ideal for offices, airports, metros, and commercial buildings. Crafted from durable 304 stainless steel with clear acrylic wings, it offers a sleek, modern look and long-lasting performance. Equipped with a brushless motor, anti-tailgating features, and auto-reset functionality, this swing barrier ensures smooth and safe operation. The SB-ES-3216 supports RFID, face recognition, barcode scanners, and other access methods. With a fast throughput of up to 50 people per minute and integrated infrared sensors, it prioritizes both speed and safety. In the event of a power failure, the barrier automatically opens for emergency evacuation. Designed for high-traffic indoor areas, the Bioteknix SB-ES-3216 blends security with efficiency. It is compatible with all major access control systems and easy to integrate. Upgrade your facility’s security with Bioteknix—available across India.

Datasheet Manual

share the website to

parameters

Size(L*W*H) 1400*160*980mm
Fuselage material Top cover 1.2mm+body 0.9mm 304 brushed plate
Diaphragm material 8mm clear acrylic
Baffle material 10mm clear acrylic
Pass width 600-900mm
Movement Brushless swing brake integrated movement
Power supply 24V 150W
Input voltage AC100V~240V,50/60HZ
Equipment power55W
Drive motor Fengdun DC brushless 90K 30W
Pass rateOpen 50 people/min; Usually closed 35 people/min
Speed of opening and closing Adjustable from 0.5s to 1.5s
Sensor pairs 6 pairs
Pilot lamp Three color light panel + three color light strip
Communication modeDry contact
Controls 12V brushless simplified board + electric control box + mesh board box
Temperature -20℃~+70℃ | Noise : ≤65dB
Humidity ≤90% No condensation
Class of protectionIP4X
Features * Reasonable and reliable design, low noise, smooth operation and long service life
* With function of opening doors automatically under power-off¬ state to meet the need of fire-fighting passage
* With functions of anti-tail, anti-reverse pass and so on
* Card can be set "with memory" or "without memory" functions
* With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set
* With infrared anti-clip function (anti-clip when gate is open or running)
* Compatible with IC, ID card, scanning and face recognition, etc
* Two modes of operation are available: open or closed
* Various working modes are available, including two-way card reading and one-way card reading, etc.
