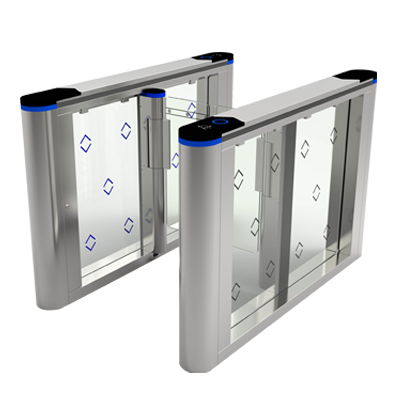

SWING BARRIER SB-Q-4000 SINGLE LANE
The Bioteknix SB-Q-4000 Single Lane Swing Barrier is a premium access control system designed for high-traffic areas such as airports, metro stations, IT parks, and government buildings. With a 600 mm passage width and fast unlock time of 0.2 seconds, it ensures smooth pedestrian flow of up to 35 people per minute. Crafted from SS304/SS316 stainless steel and acrylic panels, it offers durability with a modern design. The barrier operates on 24V DC with low power consumption (35W) and wide input voltage (100–240V AC). Built to withstand extreme temperatures (-25°C to +70°C) and rated IP44, it is ideal for indoor environments. Features include infrared sensors, photoelectric positioning, emergency auto-open, sound and light indicators, and 9 configurable modes. The SB-Q-4000 supports RFID, face, QR, and biometric access systems. Best suited for secure entry control where speed, safety, and integration matter most.
share the website to
parameters
| Technical Data | SB-Q-4000 |
| Dimension | 1500x180x1020mm |
| Unlock time | 0.2s |
| Passage width | ≤600mm |
| Throughput rate | 35p/m |
| Power supply | 100~240v |
| Operational voltage | 24v |
| Max power consumption | 35w |
| Frequency | 50~60hz |
| Prectection level | 44ip |
| Working temperature | -25~70 °C |
| Net weight | 62kg |
| Input | 12v dry contact |
| Material | SS304/SS316 |
| Swing Material | Acrylic |
| Safety first | In the fire or power-off, the door can be free to promote and ensure unimpeded |
| Various Interfaces | I/O, RS232/485, CAN interfaces, which is convenient to control signal input, and provides convenient centralized fire control interface |
| Two working modes | NC and NO, which is easy to deal with peak and normal use |
| Multiple control modes | There are unidirectional, bidirectional, free passage and authorization passage to meet fully the user's needs, which consist of nine control modes |
| Precise positioning | precise positioning by photoelectric sensors, the work cycle of door is regular and precise positioning to ensure correct position after long work |
| Various status information | It Provides the operational status of each component, the direction of the status, the prevalent status, abnormal status, etc |
| Indicator control | the indicator is able to show three status of front and back indicators (allow through, no through, system maintenance). Also which show the passage direction and passage status (A to pass B to pass no through), According to reasonable indicator control, which is convenient for users to manage |
| Machine core control | The two sides machine core work with coordination and synchronization, and the control system provide convenient management functions. the passage controller can control the machine core of all functions and settings of all parameters, which is reasonable for consisting of the various components of the machine core operation flow, and which is more intelligent and safe to design an access control function |
| Sensor Analysis | The sensor got signal which real-time processing and analyzing a person or object for a variety of action, according to the results of the analysis are to accurately control the action of machine core, indicator and alarm etc |
| Sound output | Whether it is a normal or an emergency situation, the sound output can remind passengers and administrators timely and friendly, which cooperate with light and make the perfect effects |
| Convenient settings | With the screen and buttons consisting of a human-machine interface, the users can quickly and easily query and set channel parameters, no longer totally dependent on the host computer or extremely unfriendly pure keyboard to query and set parameters. This is not a necessary function, but once experience it we believed that no one will forget it is great |
| Automatic test | In the man-machine interface, the system provides an automatic test function, which can be a good test whether the components work properly or not |
