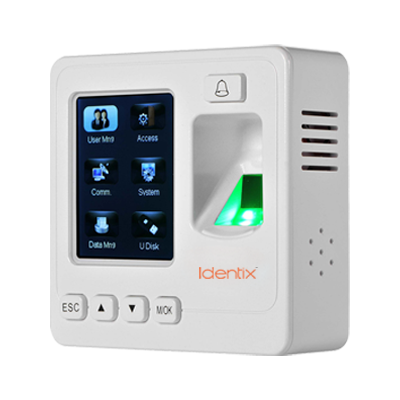

Bioteknix SF100 is a compact IP-based fingerprint terminal designed for time attendance and access control. Featuring a 2.4” TFT color display and a high-precision fingerprint sensor, it delivers fast and reliable verification. The device can store 1,500 fingerprint templates and up to 80,000 transaction logs, making it suitable for small to mid-sized organizations. It supports multiple communication methods including TCP/IP, RS485, USB Host, and Wiegand input/output for easy system integration. The auxiliary input allows connection with external devices like fire alarms or emergency switches, enhancing safety and automation. The SF100 can operate in both standalone and network modes, providing flexibility in deployment. With a sleek, compact design that fits standard switch boxes, it’s easy to install. Bioteknix SF100 offers a secure, efficient, and modern solution for attendance tracking and access management.
| Fingerprint Capacity | 1500 |
| Card Capacity | 5000 |
| Transactions | 80000 Logs |
| Fingerprint Sensor | 500 DPI Optical sensor |
| Display | 2.4” TFT |
| Algorithm | VX10.0 version |
| Communication | TCP/IP, RS485, USB-host |
| Power | DC 12V/3A |
| Operating Temperature | 0°C - 45°C |
| Operating Humidity | 20% - 80% |
| Dimension (W x L x H) | 90 90 x 34.5 mm |
| Support | Exit Reader KR500E, Electric lock, Door sensor, Alarm, Exit button, Door bell |
| Wiegand Signal | Wiegand input & output |
| Features | * Voice prompt for acceptance and rejection of valid/invalid fingers * Compact and lightweight, small size for 86x86mm soket installation * Upto 15 multi-verification methods to enhance securiy level * Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc * Duress alarm offers effective protection against duress by threats * Tamper-proofs switch and multiple alarm outputs |
