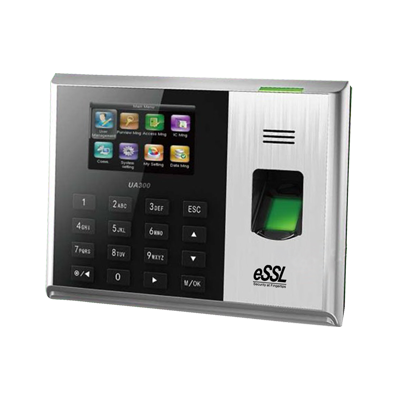

UA300

FINGERPRINT TIME AND ATTENDANCE SYSTEM

Bioteknix UA300 is a reliable fingerprint attendance and access control device designed for medium to large organizations. It supports up to 3,000 fingerprint templates and stores 100,000 transaction logs, ensuring comprehensive workforce management. The device features a 3-inch color TFT touchscreen that offers easy and intuitive navigation. Equipped with a high-resolution optical fingerprint sensor and advanced algorithms, the UA300 delivers fast verification within one second. It supports TCP/IP, USB Host, and optional Wi-Fi connectivity for flexible data transfer. Built-in rechargeable battery backup ensures uninterrupted operation during power outages. The UA300 supports relay outputs for door lock control, exit buttons, alarms, and doorbell integration. Additional features include multi-language support, real-time data synchronization, work code input, scheduled bell and alarm functions, and anti-tamper alarms. Compact and durable, Bioteknix UA300 is ideal for secure attendance and access management.

Datasheet

share the website to

parameters

Fingerprint Capacity 3000
Card Capacity 10,000 (optional)
Transaction Capacity 1,00,000 logs
CPU 800 MHz processor
Display 3” TFT screen
Verification Speed <=0.5 sec
FAR <= 0.0001%
FRR <=1%
Communication TCP/IP, USB host & client Optional ID/Mifare card reader
Power Supply 5V DC, 2A
Operating Temperature 0°C - 45°C
Operating Humidity 20% - 80%
Dimension(L x W x T) 180 x 135 x 37 mm
Standard Functions Webserver, Workcode, Scheduled-bell Self-Service Query, SMS, 9 digit user ID Automatic Status Switch, T9 input
Features * Intuitive and stunning UI designed with the most popular and internationalized factor
* Interface operation adopts modularized hierarchical design
* Faster matching speed: less than 0.5 sec
* Support user validity settings
* Support data backup and retrieve
* Support advanced workcode consisted of letters and numbers
