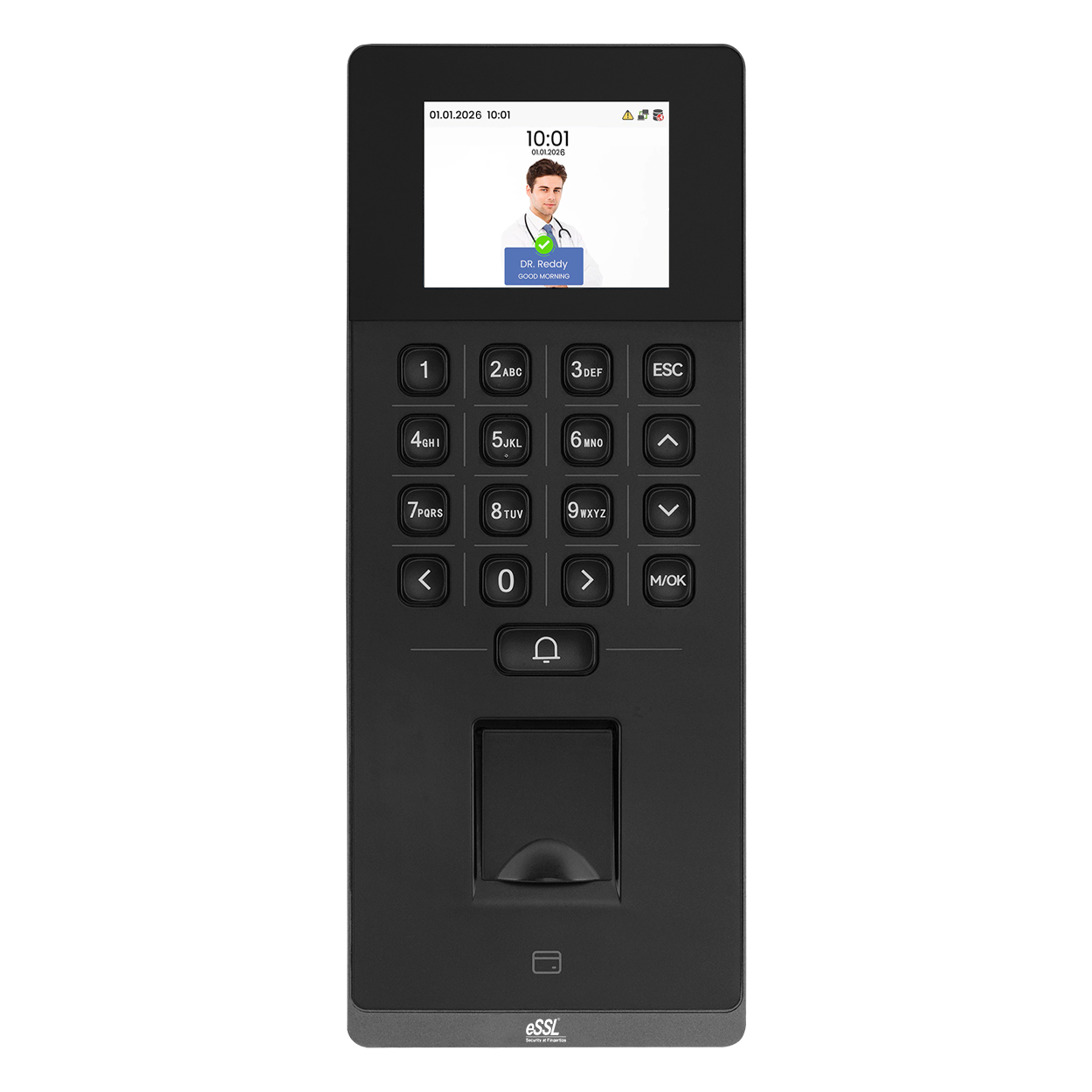

VEGA W POE

The BIOTEKNIX VEGA W POE is a modern biometric attendance and access control solution designed to provide secure, reliable, and efficient workforce management for commercial, industrial, and institutional environments. Engineered with advanced fingerprint recognition technology, the device ensures fast and accurate authentication while enhancing overall security and operational efficiency. Integrated with multiple verification methods including fingerprint, RFID card, and password authentication, the system offers flexible access management for organizations of all sizes. Its advanced identification algorithm delivers quick user verification, minimizing waiting time and improving employee attendance tracking. The device is equipped with Power over Ethernet (PoE) technology, allowing power supply and data communication through a single network cable. This simplifies installation, reduces wiring complexity, and lowers infrastructure costs. With built-in Wi-Fi, TCP/IP, USB, RS485, and Wiegand communication interfaces, the system supports seamless connectivity and easy integration with existing security and attendance management systems.

Datasheet

share the website to

parameters

Display 2.4"@ TFT Color LCD Screen (240 * 320)
Operation System Linux
Operation System Linux
Hardware Dual Core@1.0GHz, RAM: 128MB, ROM: 256MB, Speaker: 8ohm±15% @1.0W,Physical Keypad: 17 Keys
Authentication method Fingerprint / Card / Password (Physical Keypad)
User Capacity 3000
Fingerprint Template Capacity 3000
Card Capacity 3000
Transaction Capacity 2,00,000
Fingerprint Authentication Speed less than 0.5 sec
False Acceptance Rate (FAR) % FAR ≤ 0.0001%
False Rejection Rate (FRR) % FRR ≤ 0.01%
Card Type Proximity Card @ 125 kHz (Standard), Mifare Card @ 13.56 MHz (Optional)
Communication TCP/IP; Wi-Fi ; Wiegand (Input or Output); RS485; USB
Push Data Yes
Access Control Interface Electro Magnetic Lock/ Electric Lock, Door Sensor, Exit Button, Alarm Output
Power Supply DC 12V 1.5A PoE: IEEE 802.3
Operating Temperature -10°C to 55°C
Operating Humidity 10% to 90% RH
Dimensions 205.7mm * 82.7mm * 33mm (L * W * H)
Ingress Protection Rating IP65
