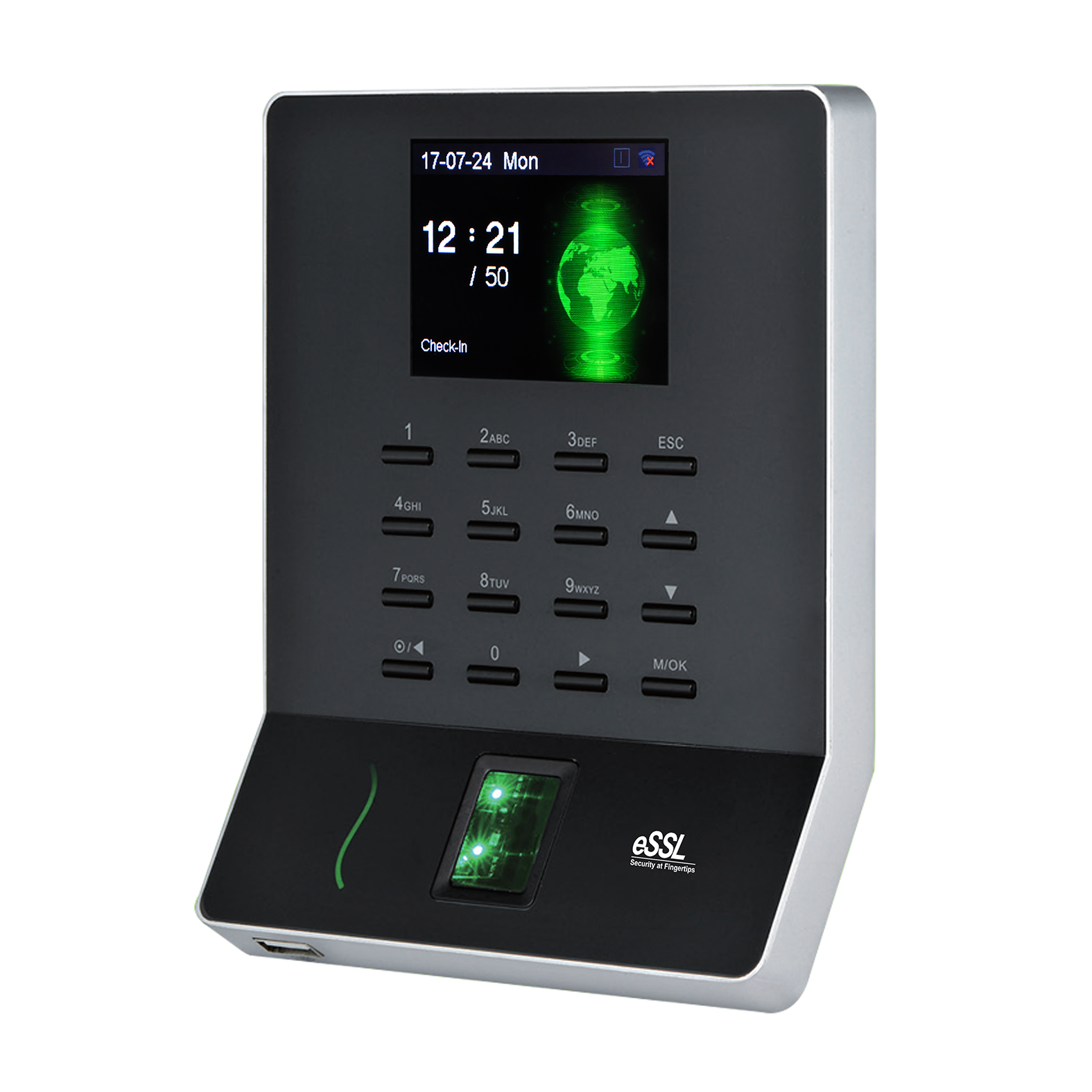

WL20

WIRELESS TIME ATTENDANCE & SYSTEM

Bioteknix WL20 is a compact and reliable fingerprint time attendance and access control device designed for small to medium enterprises. It supports up to 2,000 fingerprint templates and stores up to 100,000 transaction records, making it ideal for efficient workforce management. The device features a 2.4-inch TFT color display that offers clear navigation and user-friendly operation. Equipped with a high-precision optical fingerprint sensor, the WL20 provides fast and accurate biometric verification with a verification speed of under one second. It supports multiple communication options including TCP/IP, USB Host, and optional Wi-Fi connectivity for seamless data transfer. The device includes a built-in rechargeable battery backup to ensure uninterrupted operation during power outages. Additional features include relay outputs for door locks, exit buttons, alarm integration, multi-language support, real-time data push, and bell scheduling functions, making the Bioteknix WL20 a versatile and secure solution for attendance and access control.

Datasheet

share the website to

parameters

Fingerprint Capacity 1000
Finger Algorithm Finger VX10.0
Record Capacity 50,000
Display 2.8-inch TFT Screen
Power Supply DC 5V --- 0.8A
Operating Temperature 0°C - 45°C
Operating Humidity 20% - 80%
Dimension (in mm) (L)65 x (W)133 x (H)21
Features * Wi-Fi, USB Host, USB Client
* Stable operation under strong light source
* Infrared auto-turning on function to save power
* Build-in SSR Excel software, Shift and Report management
Communication Wi-Fi , USB Host, USB Client
Push Data Yes
Standard Functions SSR, DST, Scheduled-Bell, Self-Service Query, Automatic Status Switch, T9 Input, 9 digit user ID
