FINGER PRINT - X990

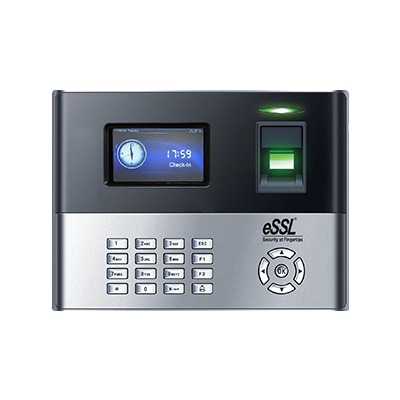

Bioteknix X990 Fingerprint Attendance System is a high-performance biometric device designed for efficient time and attendance management. Ideal for offices, schools, factories, hospitals, and other organizations, the X990 offers advanced fingerprint recognition with fast and accurate employee verification. It supports fingerprint, password, and RFID card options for versatile access control. With a sleek design, color display, and user-friendly interface, the X990 can store up to 3000 fingerprints and 100,000 records. It integrates easily with payroll software, enabling seamless daily, weekly, and monthly attendance reports. The Bioteknix X990 reduces manual errors, eliminates buddy punching, and boosts workplace productivity. This biometric device is a cost-effective, one-time investment that simplifies attendance tracking and enhances workforce efficiency.

Datasheet Manual

share the website to

parameters

Fingerprint Capacity 10000
Card Capacity 10000
Transaction Capacity 100000
Card Reader Inbuilt proximity card reader (Optional Mifare, HID prox)
CPU 32bit microprocessor
SDRAM 128 MB Nand Flash
Flash 256 MB Nand Flash
Kernel 2.6
Power & Environment * Power Supply : DC 12V --- 1.5Amp
* Operating Temperature : 0°C - 45°C,br> * Operating Humidity : 20% - 80%
* Dimension(in mm) : (L)210 x (W)157 x (H)40
Compatibility * Compatible with Multi Door controllers via weigand
* External Speaker output available (Optional)
* External Bulb output available (Optional)
* Support External Printer
Biometric * Fingerprint sensor : 500 DPI Optical sensor
* FAR : <=0.0001%
* FRR : <=1%
* Identification speed : <0.5 sec
* Algorithm Ver : 10
Audio/Visual * Display : 3" Color TFT
* Keypad : Yes
* LED Indicator : Green/Red
* Schedule Bell/Speaker : Mini Speaker
Communication * TCP/IP, USB, (Optional : WiFi, GPRS)
* Push data : Yes (support both static IP and domain server) Standard Features : work code,SMS,DLST, Self service query, Status Switch
Access control * Wiegand : In & Out both 26 or 34 bit (With or without site code)
* Relay : 12 V relay for lock EM lock, Bolt Lock or Strike lock
* Support Fire Alarm : Yes
* Door Sensor : Yes
* Anti Passback : Yes
* Door Bell : Yes
Compatible Software and SDK * eTimeTrackLite desktop & web
* SDK for desktop applications
* Web based Device Management application using Push data. Helps developers & integrators
* Supports 3rd Party Payroll/HRMS/ERP and Other applications
Exit Readers * Support exit readers : 101 HE , FR 1200, Push Button, KR500, Notouch, KR503
Optional * Battery : Yes
* Card readers : Mifare/HID Prox
* Communication : WiFi/GPRS
* Sensor : Mifare/HID Prox
Major Applications Time & Attendance , Canteen Management, School Attedance, Production Management, Gym & clubs
